Building a Double Toggle Jaw Crusher (10 replies and 3 comments)

mnlmts
2 years ago
mnlmts 2 years ago

Hello there,

I need help with the Calculation of relevant bearing loads at the drive kinematics of a double toggle jaw crusher.

I'm a mechanical engineering student from germany and have to construct a double toggle jaw crusher for my construction project of my third semester.

I have to determine all relevant reaction forces in the bearings at the drive kinematics and I have an idea, but I'm clearly not sure if I'm doing it correctly.

In the attachment I'll give all relevant technical information. (I hope it is readable, Otherwise I'll give my calculations in digital format.)

Translation of all relevant given Dimensions:

  • Hb = Height of the Crusher jaw = 2000mm
  • w = Jaw width = 900mm
  • sw = gap width( If jaws are closed) = 150mm
  • angle of the fixed jaw = 80°
  • Big Thanks in advance for all help I receive.

PS: English is not my first language, so I apologize for any spelling or grammar mistakes. Thanks for helping my Build this Jaw Crusher.

https://www.911metallurgist.com/wp-content/uploads/2015/11/12281606_987425861315982_878332385_o.jpg
https://www.911metallurgist.com/wp-content/uploads/2015/11/12279389_987425837982651_1317938766_o.jpg
https://www.911metallurgist.com/wp-content/uploads/2015/11/12271175_987425841315984_66155597_o.jpg
https://www.911metallurgist.com/wp-content/uploads/2015/11/12271008_987425851315983_1883472988_o.jpg
https://www.911metallurgist.com/wp-content/uploads/2015/11/12255599_987425874649314_844579515_o.jpg
David
2 years ago
David 2 years ago

Hi,

I can not read the 1st file on the left.  Could you post a better image and I'll help you build your Jaw Crusher.

mnlmts
2 years ago
mnlmts 2 years ago

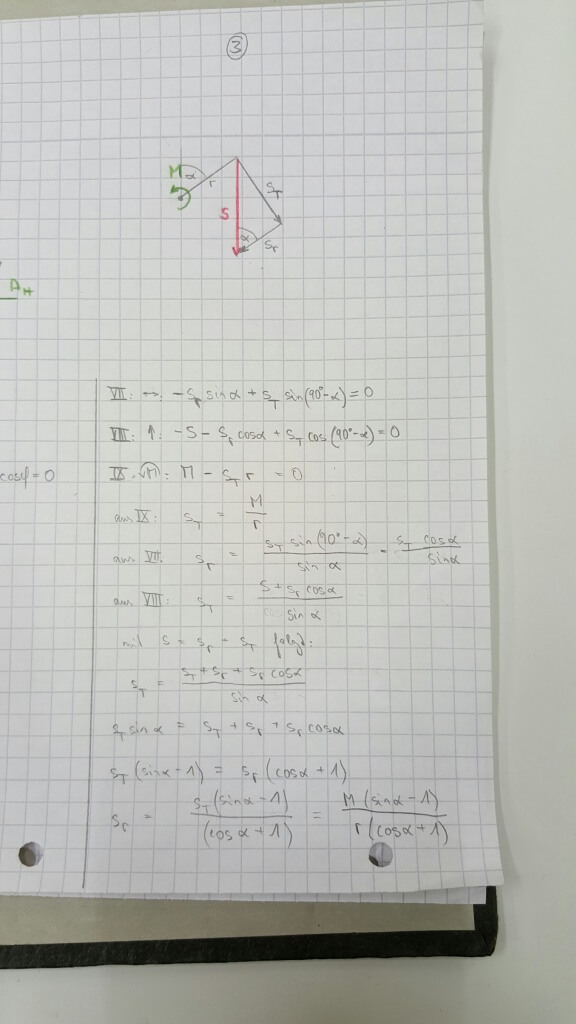

There you go,

I also updated the calculations a bit.

https://www.911metallurgist.com/wp-content/uploads/2015/11/12282107_987819711276597_328120101_o.jpg
https://www.911metallurgist.com/wp-content/uploads/2015/11/12271060_987819701276598_2140267990_o.jpg
https://www.911metallurgist.com/wp-content/uploads/2015/11/12268478_987819727943262_212824626_o.jpg
https://www.911metallurgist.com/wp-content/uploads/2015/11/12255693_987819694609932_197137498_o.jpg
David
2 years ago

please email all to forums [at] 911metallurgist.com

Matt Abel
2 years ago

Hi,

Just a quick question what is the min max size piece you expect it to produce? From what I can tell it looks like almost 6" product is this correct? Also what is the throw of the eccentric? I think if you know what size product you want to make will predict the rest of the machine. Will also need to know the hardness of the material you plan on crushing. But then again this is a large crusher and I would think most soft rock as a majority of the rock.

David
2 years ago
David 2 years ago

For everyone's benefit, here are the images for this crusher fabrication project.

Use the Social Share Bar on the Left. Tell everyone you can about https://www.911metallurgist.com/metallurgy/ It's FREE & GOOD.

David
2 years ago
David 2 years ago

Use the Social Share Bar on the Left. Tell everyone you can about https://www.911metallurgist.com/metallurgy/ It's FREE & GOOD.

David
2 years ago
David 2 years ago

Use the Social Share Bar on the Left. Tell everyone you can about https://www.911metallurgist.com/metallurgy/ It's FREE & GOOD.

David
2 years ago
David 2 years ago

Use the Social Share Bar on the Left. Tell everyone you can about https://www.911metallurgist.com/metallurgy/ It's FREE & GOOD.

David
2 years ago
David 2 years ago

Use the Social Share Bar on the Left. Tell everyone you can about https://www.911metallurgist.com/metallurgy/ It's FREE & GOOD.

David
2 years ago
David 2 years ago

Use the Social Share Bar on the Left. Tell everyone you can about https://www.911metallurgist.com/metallurgy/ It's FREE & GOOD.

David
2 years ago
David 2 years ago

Use the Social Share Bar on the Left. Tell everyone you can about https://www.911metallurgist.com/metallurgy/ It's FREE & GOOD.

David
2 years ago

How did you do with Building your own Jaw Crusher?

David
1 year ago
David 1 year ago

This may be useful: Due to their simple design and easy maintainability jaw crushers are widely used as primary size reduction equipments in mechanical and mining industries. As jaw crushers break minerals & ores of high strength and the economy of many industries depends on its performance; it is essential to improve the efficiency of the present design. The kinematic analysis of single toggle jaw crusher shows that the forces on the moving jaw plate at different crank angle are different and hence power generated varies with crank angle. One way to increase the efficiency is to store the energy in a flywheel when the supply is more than the rate of consumption and to utilize the same when the supply falls down. Hence efforts are made to design a flywheel to minimize the wastage of power and to improvise the performance parameters of single toggle jaw crusher.
