Gold Wash Plants Designs for Sale

Showing all 9 results
  • gold wash plant (4)gold-wash-plant
    gold wash plant (4) gold-wash-plant
    A 40 TPH to 70 TPH gold wash plant that's ultra-durable and easy to operate. canada manufacturer
    • 3’ x 8’ inclined double screen deck 91 cm x 2.43 cm inclined double screen deck
    • 30 to 50 Cubic yards/hour production 40 to 70 Tonnes/hour production
    • 600-900 GPM water requirement 135-200 m3/hour water requirement
    • 360 Volt - 30 KW power requirement
    • 6” (15 cm) standard waterworks inlet
    • 10 HP (7.5 kW) electric drive with belts, pulley and guarding
    • Right-Hand Motor Drive
    • 5 Top deck spray bars with high pressure brass nozzles
    • Reinforced hopper body with built in spray bar
    • 6” x 10” heavy duty tube skids with Hardox wear liners
    • Primary sluice run in catch tray with riffles and 3M matting
    • Secondary 4' X 6' recovery table, adjustable and 3M matting
    • Bottom-Deck TEMA urethane media with custom openings
    • Tapered discharge lip with wear plates
    • 7-degree decline slope setting
    • Tow lugs on four corners
    • Fully welded main frame with reinforced deck mounts
    • Electrical panel with start and stop button
    • Chain fall for hinging distributor
    • Bypass valve at water inlet
    • 14,000 lbs (6,400 kg) approximate weight
  • gold-trommel-wash-plant-3gold-wash-plant-with-trommel
    gold-trommel-wash-plant-3 gold-wash-plant-with-trommel
    The 911MPET400 is a 100 to 150 TPH Gold Trommel Washing Plant which features include:canada manufacturer
    • A fully welded tube construction main frame
    • Variable speed Electric drive components requiring very low maintenance and zero contamination
    • 10 Sided tube frame drum
    • 3/8” 400F punch plate with scrubber bars
    • Easy clean water filtration systems
    • Emergency stop functions
    Baseline design of this Gold Trommel Wash Plant:
    • Heavy-duty skids with 400F wear plates
    • Fully welded main frame with heavy HSS cross bracing
    • Formed hopper with built in spray bar and reinforcing
    • Formed catch tray with 400F liner and surge plates
    • Heavy 10 sided trommel drum with removable 3/8” 400F punch plate
    • 400F scrubber bars welded to punch plate
    • Side & Rear tow lugs
    • Steel waterworks with 6” inlet
    • 3/8" fabricated distributor with Two 5’ X12’ recovery tables with boil box,
    • Hungarian riffles and expanded mesh
    • Low maintenance 12.5 HP electric motor with built in gearbox for Trommel drive
    • Variable frequency drive for motor
  • derocker gold wash plantderocker
    derocker gold wash plant derocker
    For sale is this super sluice derocker wash plant SS800 which really is designed specifically for handling boulders and coarse rock without having to previously screen it.Sluice Plant for sale
    • Fully welded tube construction main frame
    • Variable speed hydraulic pack powering cylinders to control finger speed which allows you to control the volume of material.
    • Double hydraulic cylinders mounted on the exterior of the body
    • A heavy duty hopper to withstand large boulders
    • Three 8’ wide decks for increased washing area
    • Easy clean water filtration
    • Emergency stop functions
    Base Derocker Wash Plant
    • Heavy-duty skids with 400F wear plates
    • Fully welded main frame with heavy HSS cross bracing
    • Formed hopper with built in spray bar and reinforcing
    • Formed catch tray with 400F liner
    • Customizable screening size depending on client's specifications
    • Side & Rear tow lugs
    • Steel waterworks with 8" inlet
    • 3/16" fabricated distributor with optional boil box
    • Two 5’ X 12' recovery tables with Hungarian riffles and expanded mesh
    • Optional Hydraulic riffles
    • 118 HP diesel engine with hydraulic and fuel tank, cooler and valve controls.
    • Diesel engine can be mounted remote or on the machine.
  • gold wash plant (14)wash-plant
    gold wash plant (14) wash-plant
    canada manufacturer This massive 250 to 300 TPH wash plant was nicknamed Sluicifer by the Gold Rush Crew. Some key features of the high capacity industrial gold washing machine are:
    • A fully welded tube construction main frame
    • Plant mounted generator to power screen deck
    • Large diameter skids for easy travel through wet terrain
    • A fast clean up system
    • Dual side discharge sluice runs
    • Riffles mounted inside of screen deck catch tray
    • Heavy-duty skids with 400F wear plates
    • Fully welded main frame with reinforced deck mounts
    • Large reinforced hopper with built in spray bar
    • Rear tow lugs
    • Two 10’ X 18’ recovery tables with boil box, Hungarian riffles and expanded mesh
    • Low maintenance 40 HP electric motor for deck drive
    • Catch tray riffles and matting
    • Water inlet bypass valve

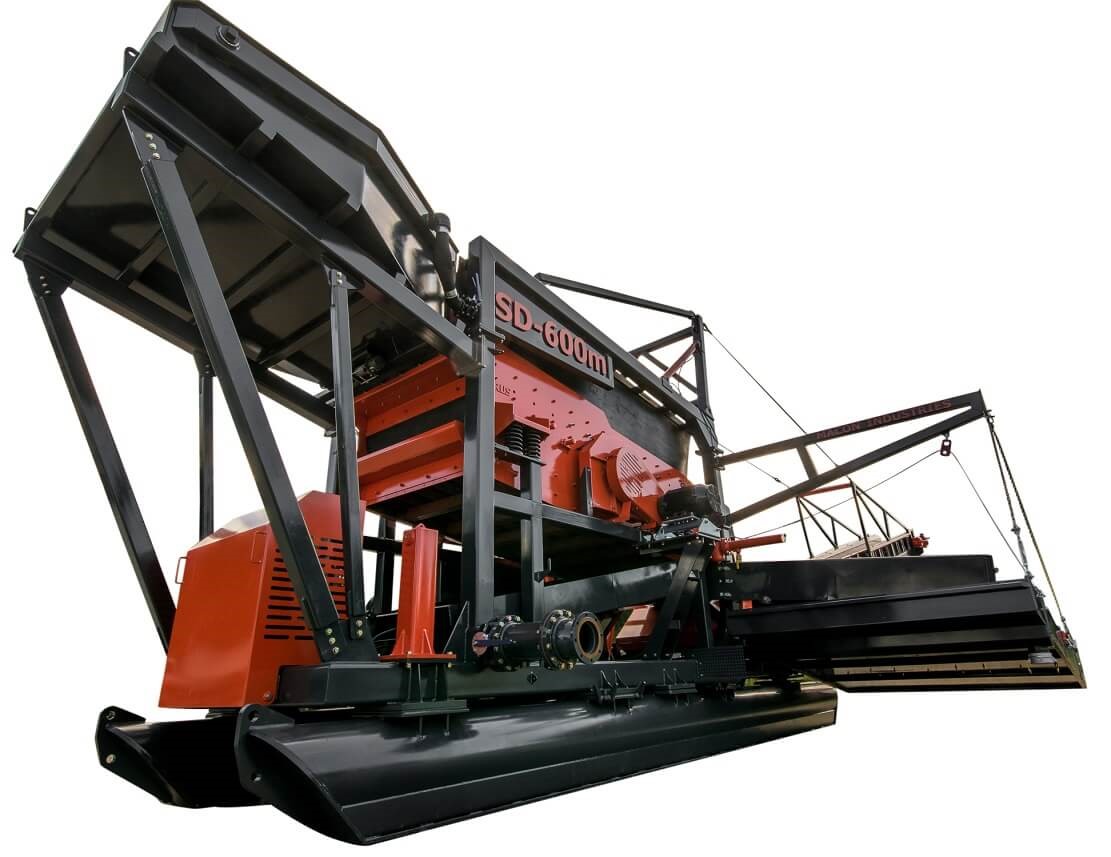

    The 911MPESD600 is also offered with pontoons for added relocation flexibility. Yes, this monster can be considered a mobile gold wash plant.
  • gold processing equipment (1)fine gold recovery equipment (2)
    gold processing equipment (1) fine gold recovery equipment (2)
    With the rising price of gold and the limited amount of mineable land, people are now focusing on the recovery of fine gold. Some rivers of the world have been sluiced as many as 6 times, yielding profitable gold each time – and demonstrating that traditional sluices can have very poor recovery. Gold Processing Equipment like the IGR500 focuses on the recovery of the Fine Gold. The submersible feed pump can be placed in the belly pan of a trommel/sceen deck, placed directly in tails of a sluice or used as a booster pump for dredge operations. The IGR 500 is a Modular Pump Fed Plant.canada manufacturer
    • The pre-screened gravel is transported to the plant by 2 5 HP, 3 inch submersible slurry pumps. The feed pumps are the same model as the transport pump for commonality of parts.
    • The maximum solids capacity of the pump is 7/8 inch, 1/2 inch recommended -Screened by a sluice plant, trommel, vibrating screen, grizzly or suction dredge
    • The slurry is distributed over the single deck vibrating screen -The -2mm material is pumped to the i350 Concentrator -The +2mm material is passed to the high efficiency sluice
    • A specially designed hopper acts to dewater/thicken the slurry while paying close attention to retaining the fine and/or floating gold
    • A third 5 HP, 3 inch submersible pump transports the -2mm slurry to the concentrator. The plant includes 3 x 5HP submersible pumps: Model KZN37.
  • fine gold recovery concentratorscrubber trommel gold washplant
    fine gold recovery concentrator scrubber trommel gold washplant
    The iCON IGR 1000 is a semi-portable Gold Wash Plant was designed by mineral processing engineers. The classification process (double deck screen) assures that you are capturing both the big gold and fine gold efficiently. In this process the grizzly will reject and rock larger than 75 mm. The rotating scrubber will then wash the feed and break up any clay. Next, the screen will classify the material. Any rock over 8mm will be rejected to tails. Material between 8mm and 2mm will be directed to the sluice. Material passing the 2mm screen will flow to the iPump which conveniently moves the slurry to the concentrators - wherever you choose to locate them.canada manufacturer Using 2 gravity concentrators, the feed to the plant must be stopped to rinse the batch concentrators. Depending on your feed this may be every 2 hours. Installation of a third concentrator will allow continuous operation of the plant: 2 concentrators will be operating while the third is being rinsed. This skid mounted unit ships inside of a 20’ container which you get to keep. The iPump allows you to locate the concentrators away from the plant in the security of the container/Gold Room.
  • large gold wash plantcomplete gold wash--plant
    large gold wash plant complete gold wash--plant
    The IGR 3000 Gold Washplant was designed for a nominal 30 tons/hour feed rate based on an alluvial type material with moderate clay contamination. Material is loaded into the plant feed hopper through a static scalping grizzly with 75 mm bar spacing. Oversize is to be periodically removed manually from the grizzly. Undersize feed material is washed into the scrubber feed chute by water jets strategically placed in the feed hopper and by a manually operated water monitor. Water is piped from an on board water manifold system that supplies water to the complete plant from the customer’s primary water supply. Material is scrubbed in this gold wash plant to let clays and silts dispersed into the slurry. Slurry is discharged over the double deck vibrating screen. Oversize (+10mm) from the vibrating screen is discharged via a chute to ground level where it can be removed by the customer’s mobile equipment or by the client’s conveyor system. Product from the bottom deck oversize (-10mm + 2mm) is discharged onto the sluice, complete with riffles and fiber mats, where coarse gold will be recovered. The screen undersize (-2mm) is pumped from the screen undersize hopper to the concentrator feed box/splitter. The concentrator feed box services a dual purpose as it regulates feed to the concentrators by flowing excess slurry directly to the sluice when required and it serves as a manual by-pass system during the concentrator rinse cycle. Feed from the concentrator feed box flows directly into the twin i350 centrifugal gravity concentrators. Tailings from the concentrator are directed to the inlet side of the sluice to aid the oversize material (-10mm +2mm) in flowing down the sluice to the final tails area. Concentrate from the twin i350 concentrators is directed to a wheeled storage tote which can be easily removed and towed to a final location for final upgrading and smelting. Concentrates from the sluice need to be removed periodically washed and added to the gravity concentrate.canada manufacturer
    • 75 mm - passes the grizzly and into the scrubber
    • 10 mm + is rejected by the top level of the vibration screen
    • 2 mm + to 10 mm - is feed to the high efficiency sluice
    • 2mm - is distributed to 2 x i350 Concentrators
  • fine placer gold mining equipmentplacer gold mining equipment for sale
    fine placer gold mining equipment placer gold mining equipment for sale
    The IGR 10K Placer Gold Mining Plant is an ‘A-La-Carte’ Alluvial Mining Equipment. This means that the user can order components from a list of existing part numbers without paying for engineering designs. The user can select options at the time of purchase or add components in the field without obsoleting the components they may already have. A 100 TPH (2400 Tons per day) gold recovery system.canada manufacturer Features include:
    • Hopper/Monitor/Grizzly
    • Scrubber
    • Vibrating Screen
    • Dewatering Cyclone
    • iCON Concentrator Battery - ideally suited for remote regions
    • Falcon Concentrator
    • Oversize Conveyor
    • DMS or Jigs for Diamonds
    • Magnetic Separator
    • Finishing Table
    An alluvial process plant controls the amount of water entering the system: the solids vary in tons per hour and gravel size distribution.
  • gold processing plantfine gold recovery equipment (5) Sale!
    gold processing plant fine gold recovery equipment (5)
    The IGR 100 Modular Gold Processing Plant is a self-contained fine gold recovery equipment system. It uses classification and enhanced gravity to assure you are catching the finest gold and the big nuggets. In the standard configuration material flows as follows: canada manufacturer
    • The miner feeds sand/gravel into the vibrating screen
    • The screen divides your feed into 2mm plus & 2 mm minus size fractions
    • The 2mm plus passes over the screen, over the Mini Grizzly & the Sluice
    • The 2mm minus will pass through the screen & down to the slurry pump
    • The pump will move the fine material up & into the concentrator
    This 2 class process is designed by Metallurgical Engineers for maximum recovery of precious heavy minerals. Capacity: 2 tons per hour passing the screen to the concentrator distributor supplier manufacturerThe feed to the screen will be greater depending on the size distribution of your material Electrical Requirement: 8kW 220Volt Generator, Single Phase Water Consumption: 50 mm external pump is suggested (not included) The Complete Fine Gold Processing Plant includes one:
    • iCON i150 Concentrator
    • iCON iPump 1.0
    • iCON iScreen 12" x 24" with 2mm screen
    • Mini Grizzly and Sluice to capture and ‘Screen Oversize’ that you have
    • Control Station to conveniently arrange your electrical and water supplies
    • Installation Kit to connect all components

Using a gold wash plant, exposed gold-bearing gravels are mined using a bulldozer that pushes and stockpiles the gravel near a wash plant. The stockpiled gold-bearing gravel is then fed into the wash plant by a front-end loader or large backhoe. This practice promotes equipment efficiency by allowing the bulldozer to continue mining while the loader or backhoe feeds the wash plant at a steady rate. When the mined gravel is fed into the washplant. It is classified by particle size using various stationary or vibrating screens. Classifying gravels provides for more efficient gold recovery, reduced water consumption, and facilitation of mine site rehabilitation, and is practiced by most operators. The oversize material, usually larger than two inches, slides out of the washplant into a pile where it can be moved by a front-end loader or bulldozer. The undersize material and gold-bearing gravel is mixed with water and flows through the sluicebox where the gold and heavy black sands are concentrated. Tailings are gravel, sand, and other materials accumulated at the end of the sluicebox. Tailings are routinely moved away from the sluicebox by a loader or bulldozer.

large gold wash plants

Gold Wash Plant for Sale

The water that carries the gold-bearing gravel through the sluicebox becomes sediment-laden and turbid. This “muddy” process water flows from the end of the sluicebox over a pile of fresh tailings into a series of settling ponds. These ponds are designed to hold the “muddy” water long enough for the fine sediments to settle. The physical design of the ponds depends upon the amount of water flowing through the system, the sediment characteristics of the gravels being worked, and the physical characteristics of the site. Most mines use a series of small settling ponds to permit more flexible water management. Small ponds are usually easier to build, repair, dean, replace, bypass, and rehabilitate than larger ponds. The use of pre-settling ponds is encouraged. A pre-settling pond is located in the tail race between the sluice and the first settling pond. Sands and other heavy settleable solids are collected here where they are easy to wash.

However, some zero-discharge systems do have occasional discharges, usually due to water seepage through pond dikes. This seepage almost always meets the settleable solids effluent standards, and in most cases, Is probably of better quality than the water discharged from typically operated settling ponds. I.e., less settleable solids and lower turbidity. Carefully designed and Implemented water management practices are required to achieve zero discharge of “muddy water into adjacent streams. Water used in the sluicing process Is pumped from the nearby stream through the washplant and into the settling ponds. Water Intake from the stream Is suspended when the ponds contain adequate water to support continued sluicing operations by recycling pond water to the washplant. In some cases, groundwater seepage Into the settling ponds may be sufficient to eliminate the need for adding stream water to the system. The practice of zero discharge and the recycling of mine water contributes to compliance with federal effluent limitations and State water quality standards.

Placer mining involves equipment ranging from a simple gold pan all the way up to trucks, excavators, and a gold wash plant.This type of gold prospecting usually involves less investment and will consistently yield small amounts of gold, with occasional bonanzas for those who are persistent. If you can learn to reliably return from every trip with decent concentrates, so that over time you fill a five-gallon bucket, and then maybe even a fifty-five-gallon drum, with black sands, magnetite, ilmenite, rare earth elements (REEs), and gold, you will be rewarded in the long run.

Either way, your long-term goals are your own.Very few prospectors are simply in it for the money, looking at this as a way to become a millionaire overnight. Some of us just like to get out of town, camp in the mountains, and enjoy the spirit of the outdoors. Some people like to work up a little sweat and appetite, improve their health, and learn a little. Some of us like to solve problems and run machinery, and enjoy the challenge of keeping a pump going or making sure the sluice is running right. Still others like the wildlife, the scenery, and the historical importance of the Wild West, and bring back their riches as photos and videos. In each case, if you toss in a little gold fever as motivation and stay scientific about your sampling and exploration, you will prosper far and above the value of your recovered material.

Still, a nice payday is always a treat. One sure way to reach that goal is to keep trying. Keep practicing, keep exploring, and keep getting out in the field. Another truism that seems to hold is that the farther away from civilization you get. the better your chances.

How to Start Placer Mining

Guidelines to Starting your own Load/Placer Mine

The development of a load/placer mine and the selection of the proper gravity recovery plant is more difficult than most people realize. Television shows have glamorized mining making it look like anybody can start a mine with little to no experience. What people don’t realize is that mining is a structured engineering discipline taught at university. Just as you should not build your own bridge with out knowledge of civil engineering, you should not think becoming a miner is a simple task. If you have no experience in the mining field you need to get educated about the process before you embark on this adventure. We have compiled a basic guide to assist in that process.

The terminology used for this type of mining is often interchanged. The term for the type of deposit under consideration is alluvial. Alluvial deposits are formed when the gold has migrated from its original deposition by weathering to a new locations often in active stream beds or in historic water courses now overlain by sediments or glacial sediments.

In general Placer Mining is typically the recovery of gold from stream sediments through the use of dredges and sluices or other gravity means. Load mining generally involves the stripping of an over burden layer (soil) to uncover the underlying gravels that contain the gold. These deposits are often mined with mobile equipment and the ore trucked to a gravity treatment plant.

Basic Gold Placer Mining Equipment

how to start a placer mining operation small placer sluice how to start a placer mining operation large river dredge

how to start a placer mining operation large alluvial plant using sluices for gold recovery





Developing A Mine

Things to consider:

1. Permitting – am I allowed to disturb the land – excavating pits, leaving tailings behind, water usage, noise, air quality. In most cases you are not allowed to simply start mining even on your own land without the proper permits.

2. Resource estimation – how much gold is present (grade and tonnage) and what does the deposit look like – over burden depth, ore depth, gravel size. Generally, a placer resource is established by drilling or augering holes around the deposit to delineate the extent of the gold. This is often combined with field gravity recovery testing to provide an estimate of the recoverable grade.

3. Ore Characteristics – is the material easy to treat or are there large boulders present, is the material high in clay content, is the material frozen.

4. Test work – have you conducted any test work or field testing. A gravity recoverable gold test is an important piece of information that allow you to understand how much gold can be recovered.

5. Water usage – gravity systems use a lot of water but the majority of it can be recovered with proper planning. You need the right quantity available to start operations.

6. Mine plan – do you have a mine plan – where are you going to mine first, where is the overburden going to be placed, where are the tailings going to be placed, is the plant going to be in one spot or moved during the mine life, what are the haulage distances. Is this a seasonal operation?

7. Plant selection – there are a large variety of wash plants available and the selection of the proper plant requires analysis of the situation to ensure the correct plant is selected.

Mine Conditions
– Where is your project located? – terrain, climate, infrastructure variables
– How large is your concession? Is a mobile or fixed plant right for this application?
– How many yards/hour (m³/hr or tons per hour) do you want to process?
– How much water do you have available (gpm or m³/hr)?
– Is there power available from the grid or do you required generation?

Plant Characteristics
– Are you looking for a mobile machine that you move regularly or a stationary plant that you haul your ore to?
– What type/size of equipment will you be feeding the plant with (front end loader, dredge pump, other)?

Feed Characteristics
– Ore consistency:
– What is the estimated maximum boulder size (in, mm)?
– Is there significant clay present?
– What is your maximum gold size (mm or um)?
– Is there fine gold present, what is the typical size (um)?

8. Economic Model – Once you have made some initial assumptions you need to develop an economic model (even a basic one) so that you know if the project is viable before you start. No matter what type of project you should try and establish some basic economics unless this is just going to be a small hobby operation where profit does not matter. There are lot of assumptions required to develop the model and you need to be realistic in your assessment. Add contingencies for operating costs of 10-15% and 20-30% for capital costs.

  • Revenue – how much gold can be recovered
    o tonnage processed per period
    o recovered grade
    o gold price
  • Operating costs – what does it cost to recover this gold
    o Mining Costs – over burden stripping, excavation, haulage, dewatering, labor, lease or buy
    o Processing Cost – plant spares, labor, water, power generation
    o Camp Costs – travel, lodging, food
    o Gold Transport, Security, Refining, and Insurance costs
    o G&A Costs – permitting, supervisors, legal
    o Concession Costs – purchase price or lease fees
    o Royalties – third-party payments to property owners or governments
  • Capital Costs – what equipment needs to be purchased to make this project successful
    o Mining Equipment – dredge, excavators, bulldozers, haul trucks, front end loaders
    o Process Equipment – what kind of plant is right for the throughput and ore characteristics
    o Ancillary Equipment – water pumps, electricity generation, light vehicles
    o Camp Cost
  • Cash Flow – develop an annual cash flow based the above items and determine the pretax net present value and internal rate of return. Don’t forget about tax as a next step and also consider exchange rates and profit repatriation for foreign projects.
  • Optimize – once you have the basic model complete you should go through it to see how you can maximize your profit – adjust the tonnage (which changes the capital and operating costs), adjust the cutoff grade don’t trade dollars for the sake for gold production (recreational mining) – if it does not make money leave it behind if you can, consider the haulage distances and moving the plant….

911Metallurgist can help you develop a successful mine. We can guide you through the steps required and assist you every step of the way no matter the size of your operation.
