8″ Gold Smelter Kit
US$1,450
The Deluxe 8″ Kit is the first, ultra quiet, sectional propane gas fired furnace that can smelt ore concentrates, fire assay, melt pure metals, old jewelry. It can do it all and in larger quantities.

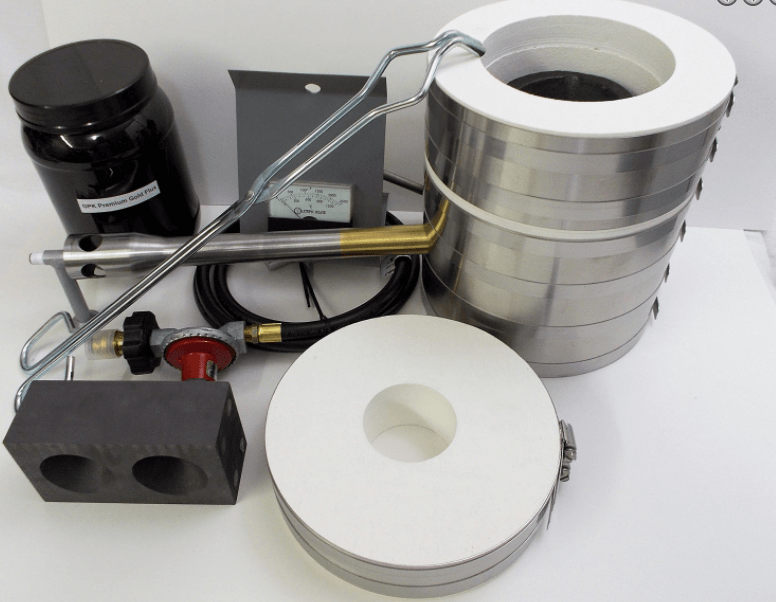

Included in this Kiln Kit:
- Height: 11” X Width: 8” OD x Chamber: 5” x 5” x Weight: 10 lb
- Propane Fired (Do NOT use Mapp Gas)
- Stainless Steel exterior
- Alumina Silica Refractory interior rated for up to 2300°F
- Modular design – provides easier access & removal of crucible from the chamber for pouring.
- Olympic Analog Pyrometer
- USA Custom Built & Precision Machined 160,000 BTU Bi-Metal Brass Tipped Burner with Stand
- 6” Propane Hose
- 60psi Regulator with Gauge and Needle Valve
- A2 2.5 Kg Salamander Super Clay Graphite Crucible
- Clay Crucible Pedestal
- Graphite Double Conical Mold
- 18” Crucible Tongs
- 1 lb Melting Flux
- 1 lb Premium Gold Flux
- 8 oz Bone Ash
- Liner Restore Formula
- Instruction Manual & Smelting Tips
Note: Propane not included.

Description
The Deluxe 8″ Golden Kit is the first, ultra quiet, sectional propane gas fired metal & gold smelting furnace that can smelt ore concentrates, fire assay, melt pure metals, old jewelry. It can do it all and in larger quantities.
The kit is constructed of a stainless steel tension adjustable jacket, surrounding alumina silicate refractory insulation that comprises the interior of the kiln. The refractory insulation has an operating temperature rating of 2300° F.
We offer the only modular kiln that allows for easy removal of the crucible before pouring. The liner of the kiln is constructed in a layered and stacked configuration and is less susceptible to cracking from thermal expansion and contraction, as each layer can expand or contract separately. Another feature of the modular design is that individual sections of the kiln liner can be replaced at a fraction of the cost of replacing the whole liner, in the event of a serious spill or boil over of the crucible.
![]() | ![]() |
Instruction Manual included.
Mini Gas Furnace Dimensions
Weight | 19 lbs |
---|---|
Dimensions | 18 x 12 x 12 in |
