laboratory filter press (2 replies)

P
Plamen Georgiev
7 years ago
Plamen Georgiev 7 years ago

Dear colleagues,

please give me any recommendation or suggestions about suitable laboratory filter press for processing of pregnant leach pulp generated during bacterial leaching of final copper slags in a bioreactor. We need to use this equipment in two cases:

Case 1 - removal of the fine mineral particles (below 100 micrones) from the pregnant leach pulp with pH 1.7 - 2.0, pulp density - 15 - 17.5 %, volume of pulp treated per day  25 L.

Case 2 - removal of silikagel from the pregnant leach solution as a result of the dissolved silica coagulation. The volume of being treated per day 18 L, pH < 1.0.

Thank you very much in advance!

David
7 years ago
David 7 years ago

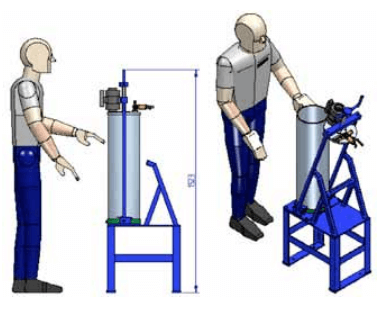

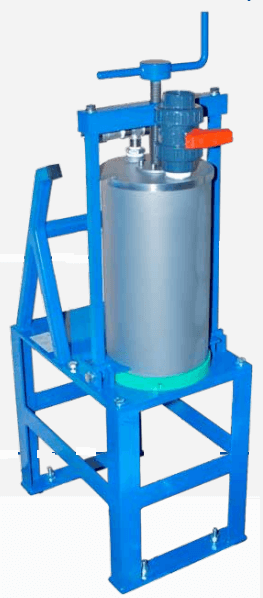

Have a look at https://www.911metallurgist.com/equipment/laboratory/drying/sample-pressure-filter/

interior in polyurethane of whole stainless steel.

Use the Social Share Bar on the Left. Tell everyone you can about https://www.911metallurgist.com/metallurgy/ It's FREE & GOOD.

P
Plamen Georgiev
7 years ago
Plamen Georgiev 7 years ago

David,

thank you for the share link!
