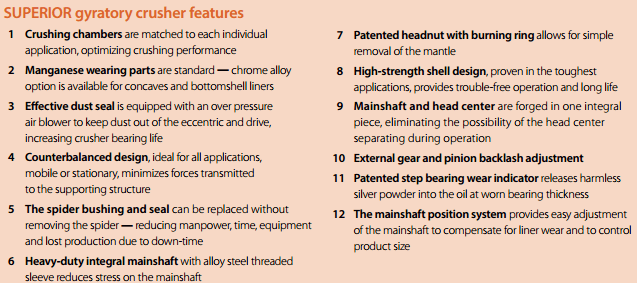

Gyratory Crusher Parts List Assembly

Metso.com

Column1Column2Column3
Spider CapMainshaft Eye Bolt
Breather PlugSleeve Clamp Ring
Spider Vent CoverMainshaft Sleeve
SpiderMainshaft
Spider BushingHead Nut
Spider Arm ShieldBurning Ring
Spider Bearing Lube HoseSpider Bearing Overflow Hose
Spider Bushing Oil SealUpper Mantle
ScraperFifth Tier Concaves
Spider Rim LinersUpper Top Shell
Lower Top ShellShell Separator
Upper CounterweightFourth Tier Concaves
Eccentric BushingThird Tier Concaves
Eccentric Bushing KeySecond Tier Concaves
EccentricBottom Tier Concaves
Side LinersLower Mantle
Narrow Arm LinerPlastic Pack
Air Inlet ConnectorConcave Support Ring
Bottom Shell Bushing KeySplash Curtain
Bottom Shell BushingDust Collar
Bottom ShellUpper Dust Seal Retainer
Bottom Shell Hub LinersDust Seal Ring
Lower CounterweightDust Seal Retainer
Eccentric Wearing PlatePinnionshaft Arm Liners
Mainshaft StepDrive End Bearing
Step WasherPinnionshaft
Piston Wearing PlateDrive End Seal
MPS CylinderDrive End Seal Plate
MPS Cylinder Upper BushingPinnionshaft Housing
PistonPinnion End Seal
MPS Cylinder Lower BushingPinnion End Bearing
MPS Oil SealPinnion End Seal Plate
Clamping PlatePinnion
Eccentric Support Plate
Eccentric Gear Key
Eccentric Gear
Position Indicator Probe
Seal Retaining Ring
MPS Cylinder Cover

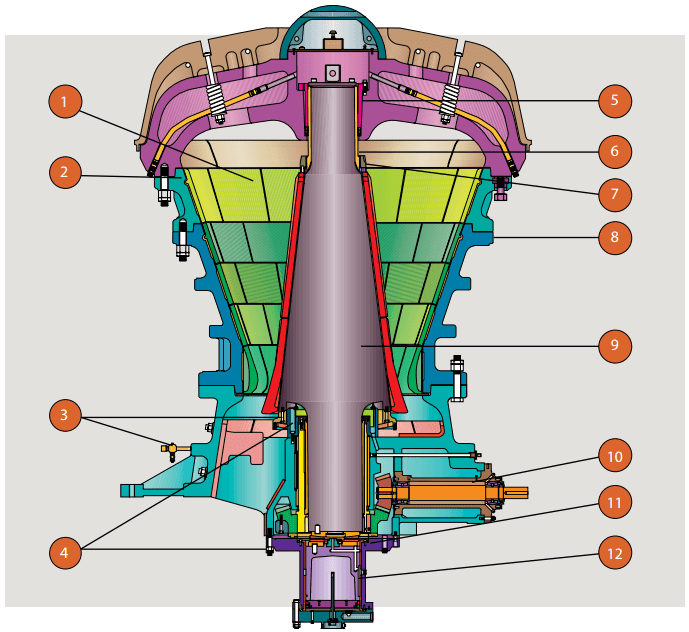

Gyratory_crusher_lubrication_and_filtration

Gyratory Crusher Parts & Assembly List

Excelfoundry.com

Column1Column2Column3
Mainshaft ComponentsSpider Components
Mainshaft SleeveSpider Cap
MainshaftClamping Plate
Haed NutSpider
MantleSpider Arm Guard
Splash CurtainSpider Bushing
Dust SealSpider Bushing Oil Seal
Upper Dust Seal RetainerScraper
Lower Dust Seal ReatainerMiscellaneous Components
Top ShellSpider Arm Shield Bolt
Eccentric ComponentsShell Bolt
Eccentric BushingConcaves
EccentricBacking Compound
KeyConcave Support Ring
Bottom Shell BushingDust Collar
GearBottom Shell
Eccentric Wear PlateBottom Shell Hub Liner
Mainshaft Step PlatePinionshaft Components
Step WsaherPinionshaft Housing
Piston Wear PlatePinionshaft Housing Cap
Hydroset ComponentsPinionshaft
Eccentric Support PlatePinionshaft Bearings
Upper Hydroset BushingPinionshaft Seals
Lower Hydroset BushingSpacer
Hydroset CylinderPinion
Piston
Hydroset Seal
