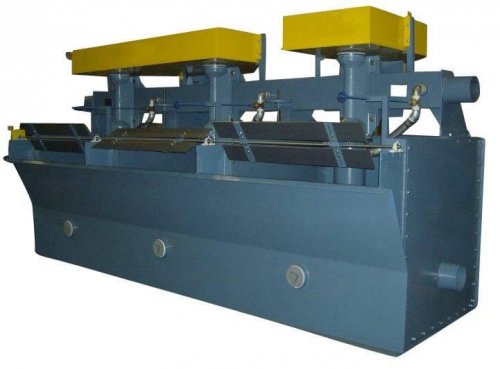

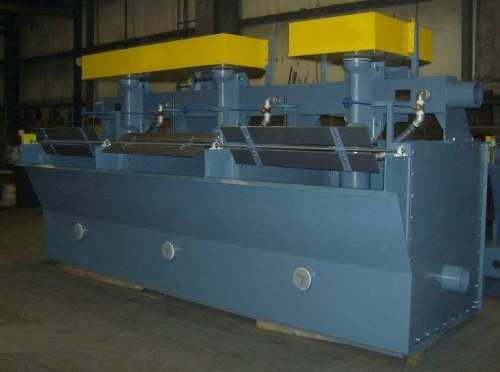

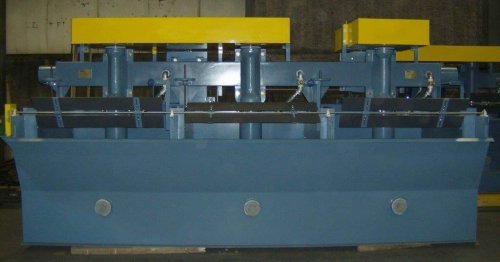

Denver Style Flotation Cells

These banks of larger industrial froth flotation cells are modern reconstructions of the classic DENVER Flotation machine designs. Made to order to any size/volume and cell per bank you need.

Specifications

canada manufacturer

Sizes: 100 cu.ft./cell – 600 cu.ft./cell (open flow) = from 2.82 cubic metres to 17 cubic metre
Sizes: 100 cu.ft./cell – 300 cu.ft./cell (cell-to-cell) = from 2.82 cubic metres to 8.5 cubic metre

  • Mild steel construction
  • CRS shaft
  • Urethane wearing parts
  • Cast spindle bearing housings
  • Machined standpipes
  • Abrasion-resistant steel liners
  • V-belt drive
  • OSHA-type drive guard
  • HSS superstructure

Options

  • Stainless steel construction
  • Urethane or rubber-lined
  • Automatic level control
  • Froth paddle assemblies
  • Feed/discharge/transition boxes
  • Launders
  • Support stands
test

Description

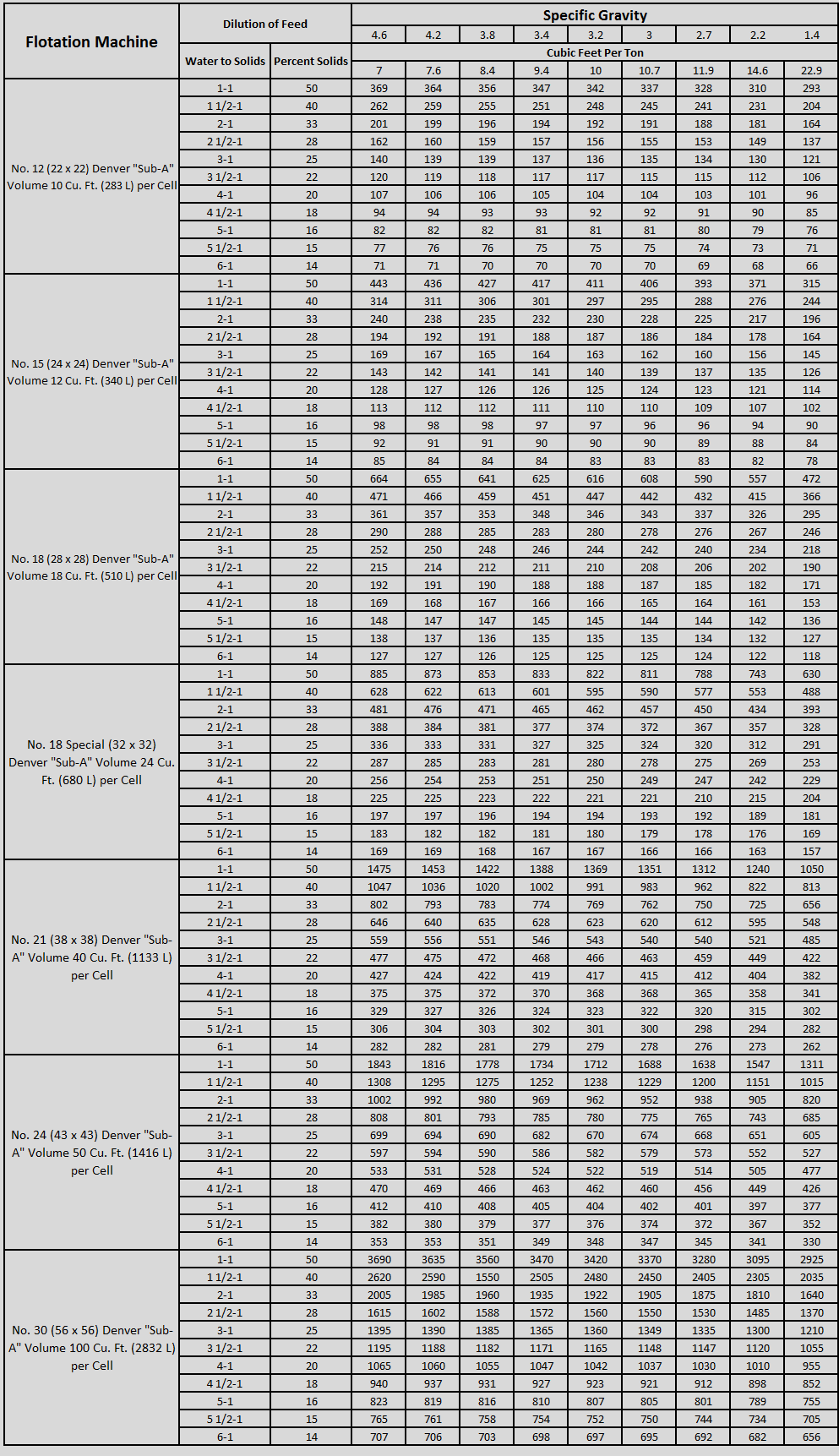

flotation-machine-capacity sizing table

denver flotation cells (7)



denver flotation cells (5)

denver flotation cells (3)

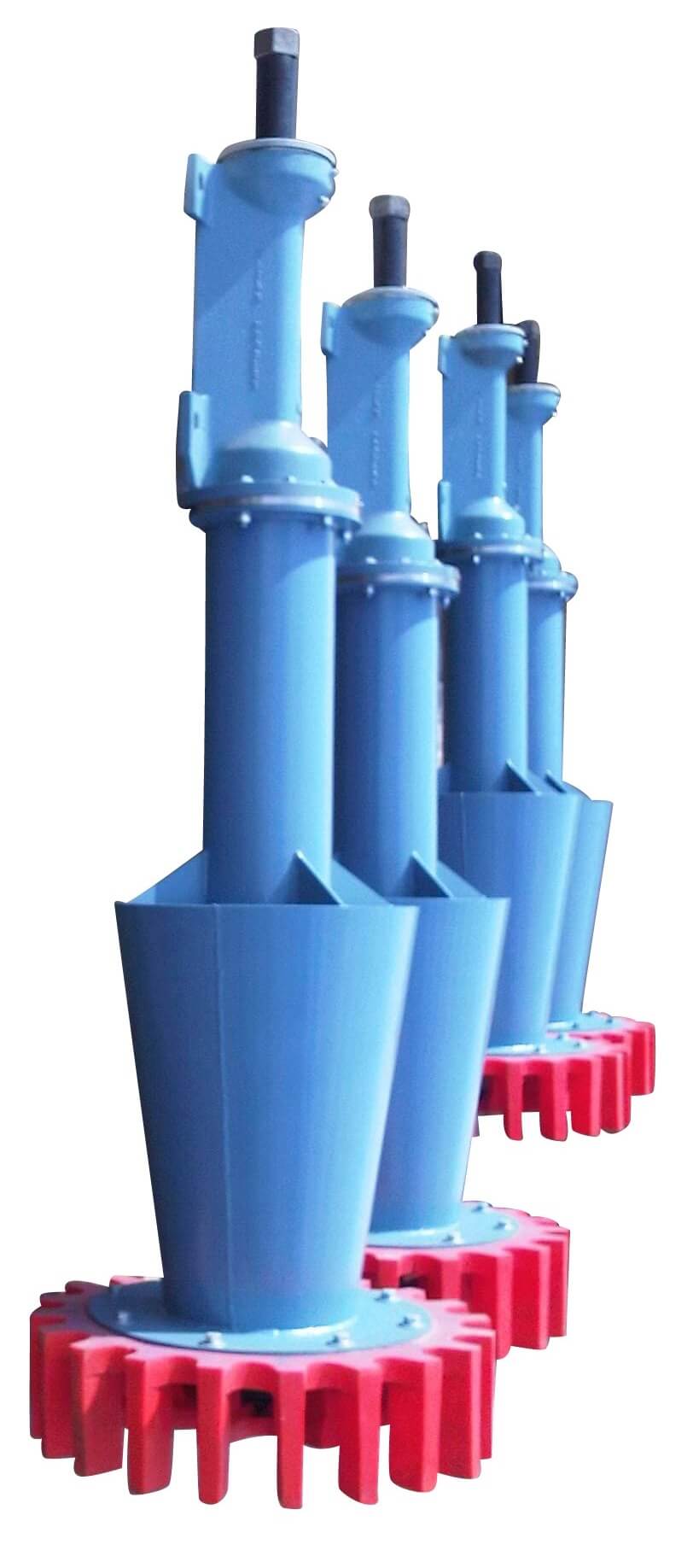

dr180-open-flow-mechanism1 (2)
