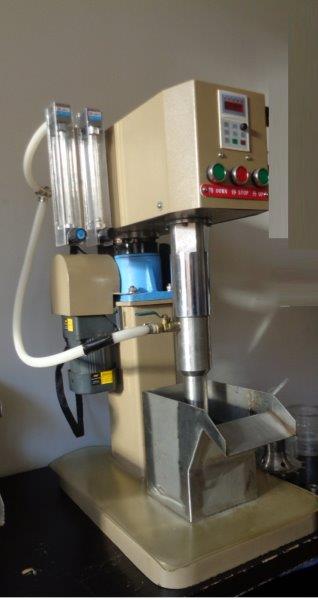

Laboratory Flotation Machine 911MPE-D12-A

Laboratory Flotation Machine 911MPE-D12-A

US$7,500 $6,500

The perfect, affordable alternative to the original Denver (Metso) D12 flotation machine used in bench-top laboratory testing.

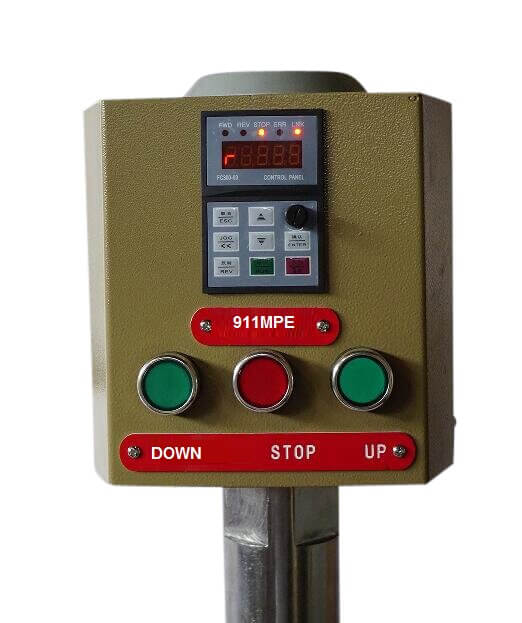

Comes with standard digital variable speed controller 0 to 2000 RPM.
Maximum recommended operation speed of 1400 RPM

Attrition scrubber blades included.

MOTORIZED Agitator Lift.

Complete with tanks selection:

china manufacturer

  • 0.5 L
  • 0.75 L
  • 1 L
  • 2 L
  • 4 L
  • 8 L

Agitator:1-year-warranty

  • 54 mm
  • 73 mm
  • 95 mm

Standard 220 Volt, 60/50 Hz, 1 or 3 phase. Optional 600 Watt Step Up Converter Voltage Transformer for easy 110 Volt functionality. (I use the 1150 Watts).

test

Description

replacement tanks cells for d12 laboratory flotation machinelow cost laboratory flotation machine

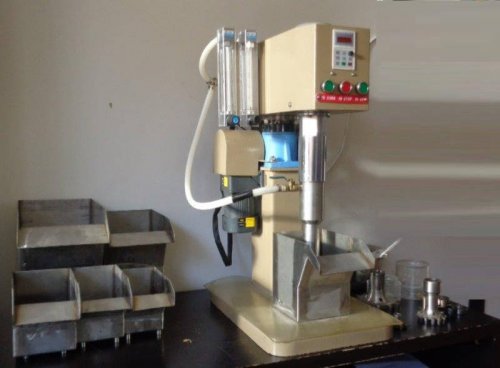

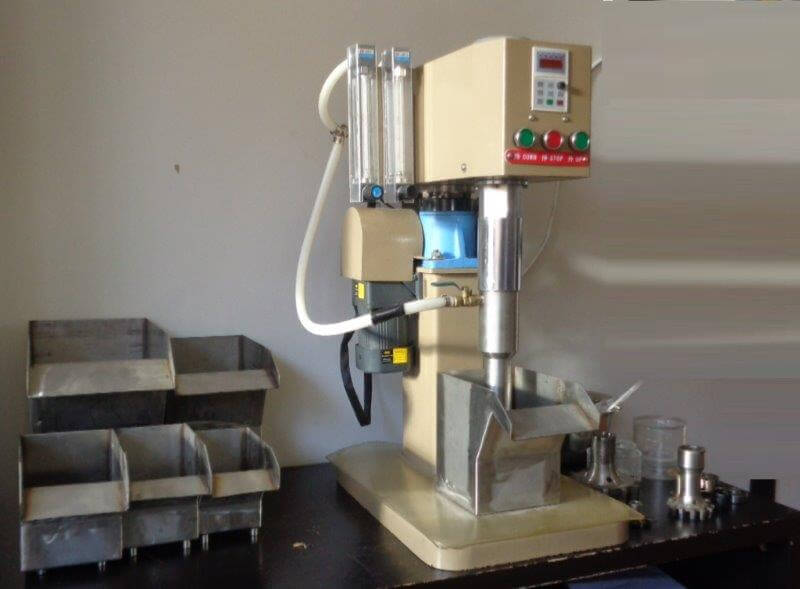

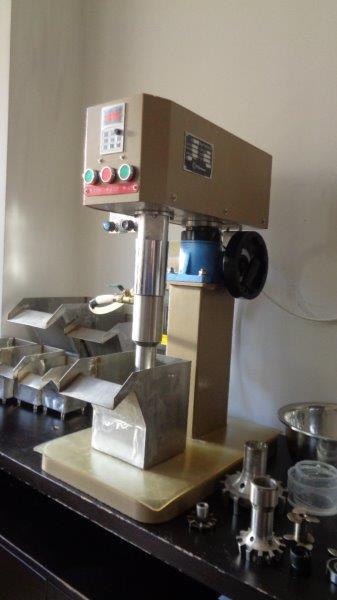

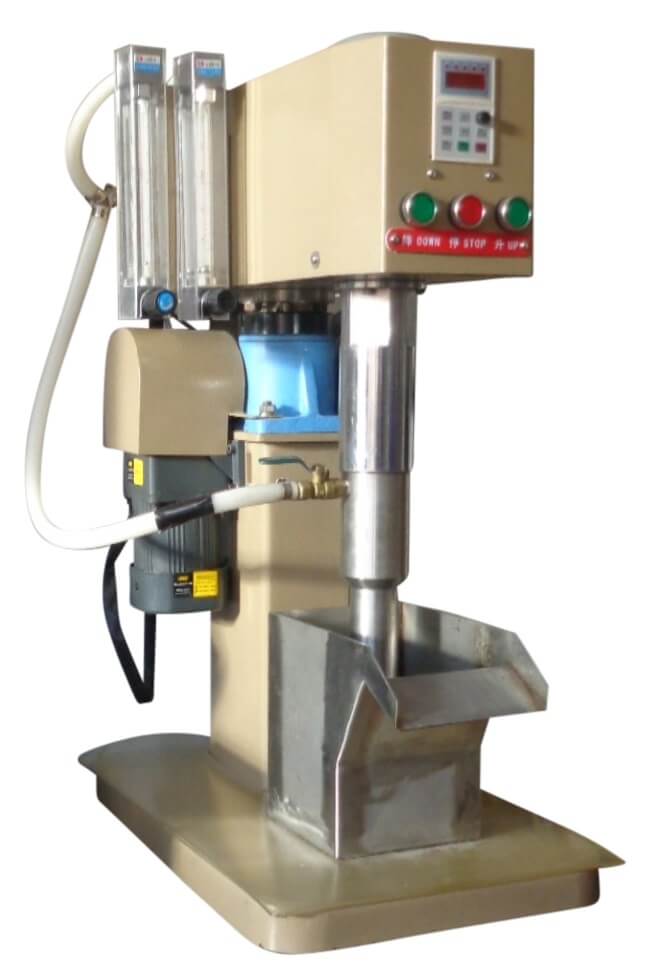

The 911MPE-D12-A laboratory flotation machine has a suspended type mechanism and include a totally enclosed anti-friction spindle bearing, stainless steel shaft, stainless steel standpipe with air control valve, three changeable stainless diffuser type hoods, and three removable stainless open type impellers of different sizes for use in various size stainless steel or acrylic tank. Our 911MPE-D12-A lab flotation machine is supplied with 6 sizes of flotation tank which enables it can do rougher,cleaning and scavenging tests.

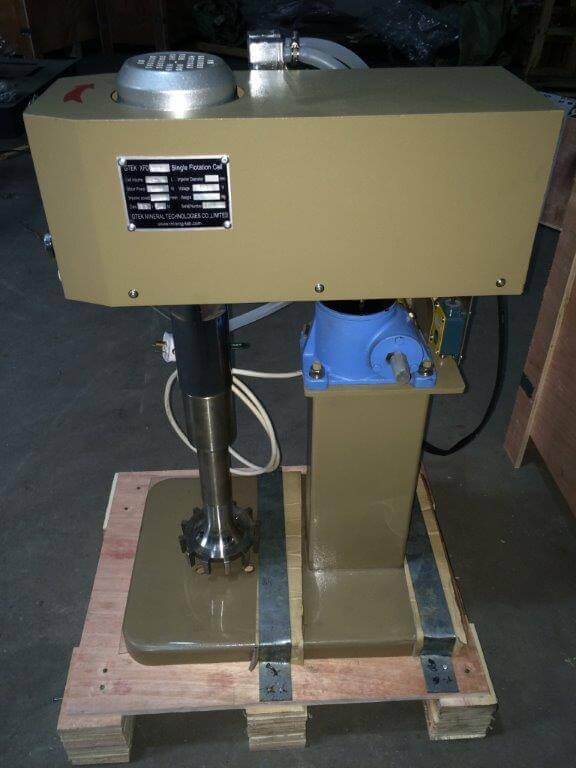

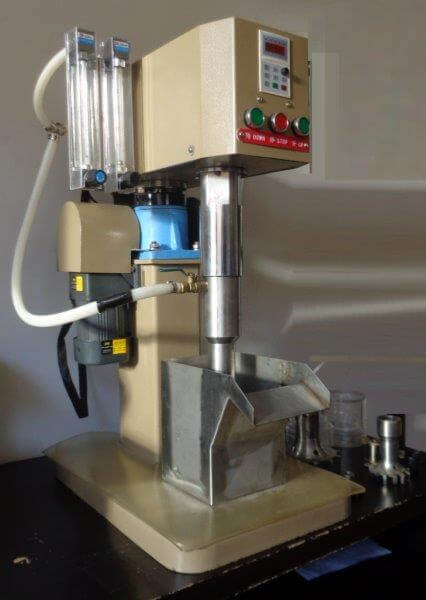

laboratory flotation machine

metso_d12_laboratory_flotation_machine-1

Maximum recommended operation speed of 1400 RPM

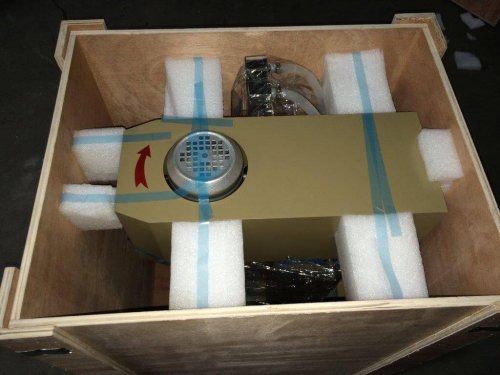

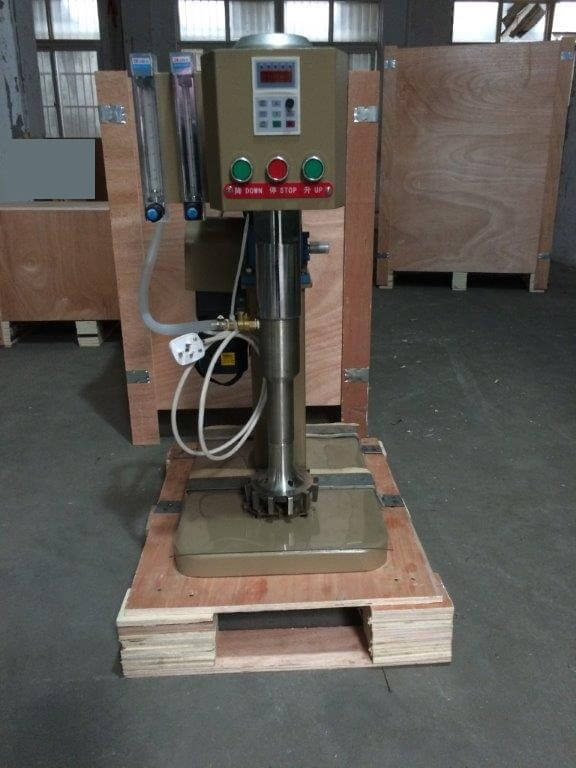

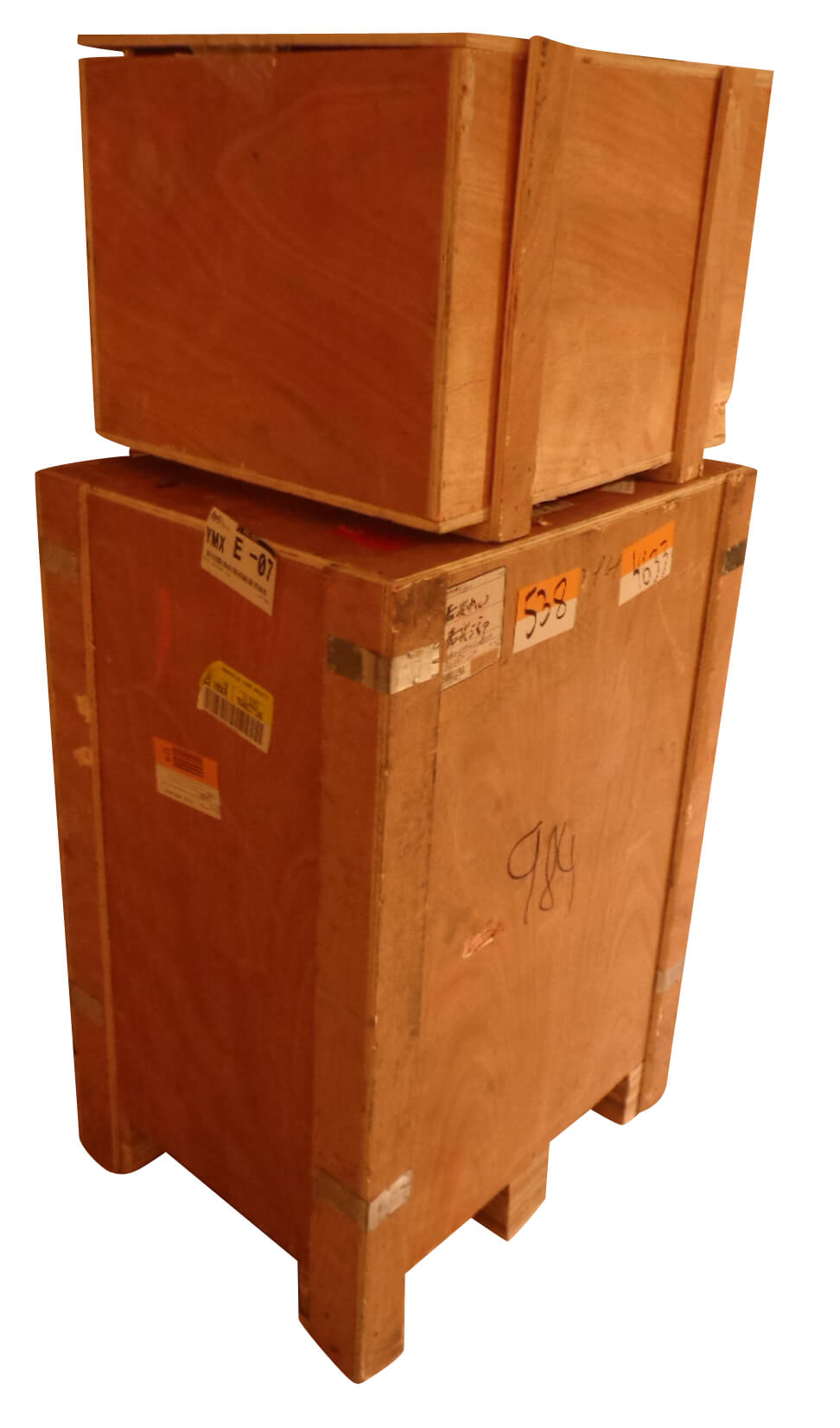

SHIPPING DIMENSIONS:
1 package for the D12 machine: 64*52*94cm and 79Kg
1 package for the accessories: 53*50*41cm and 28Kg

dimensions_of_this_flotation_machine

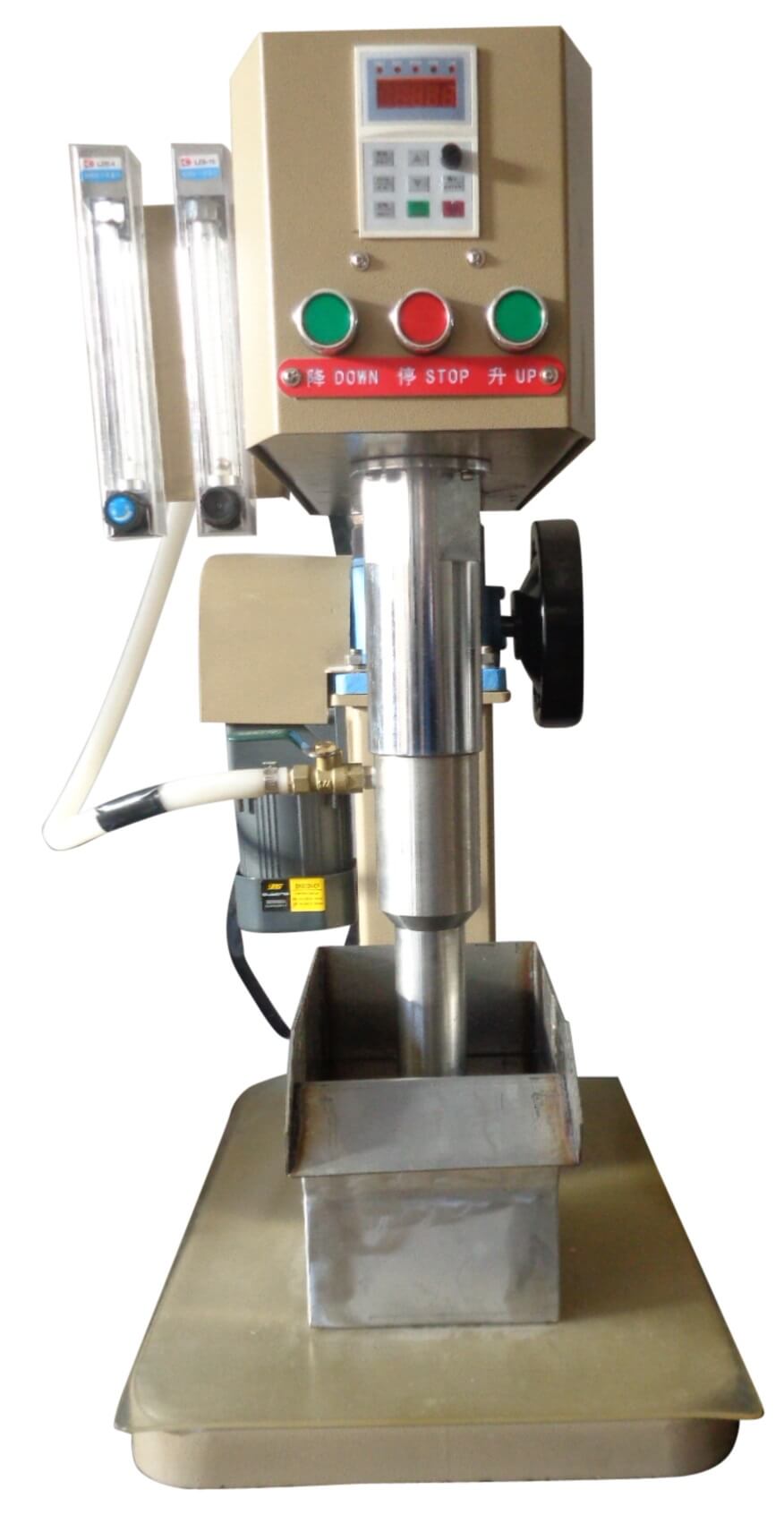

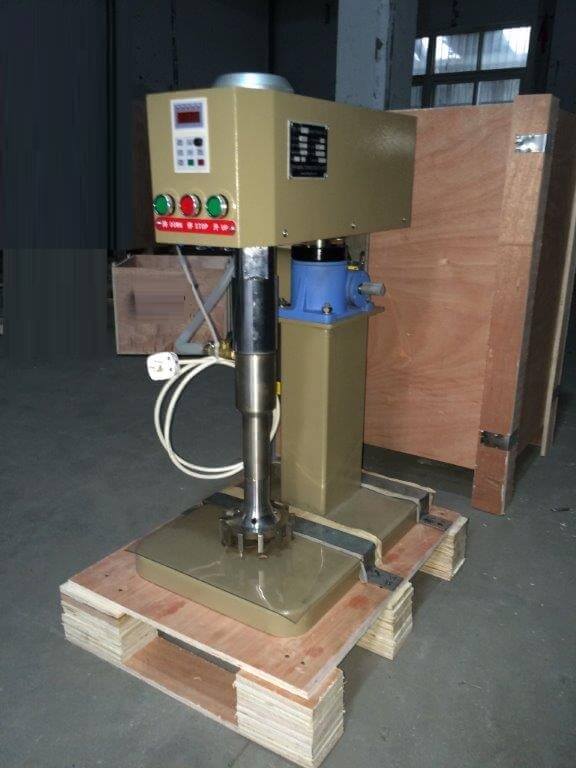

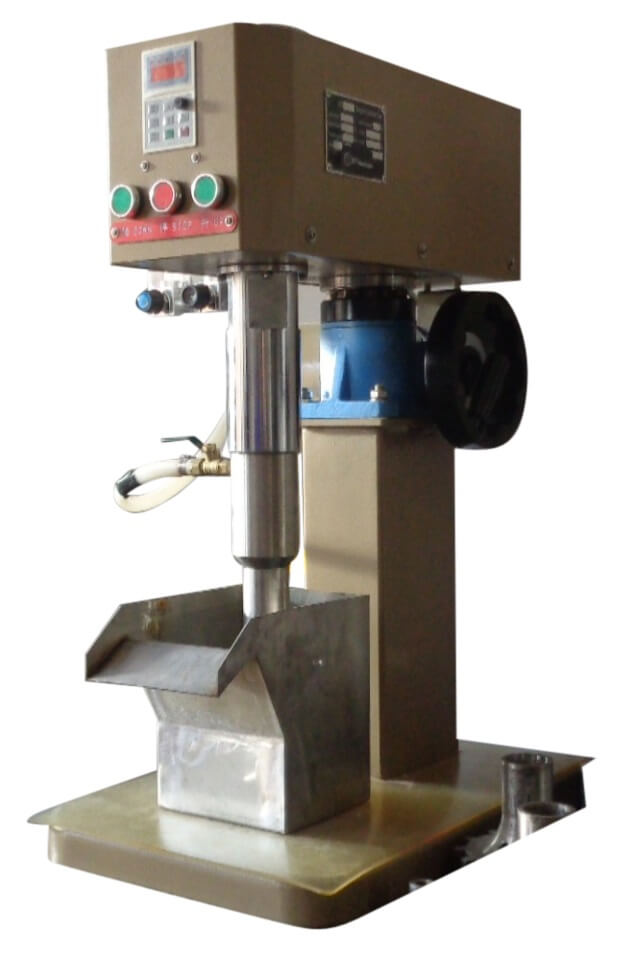

metso denver flotation machine

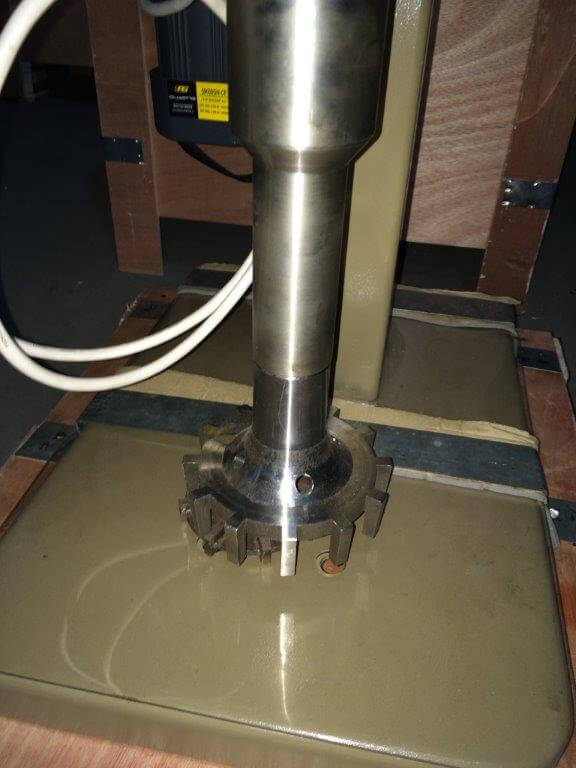

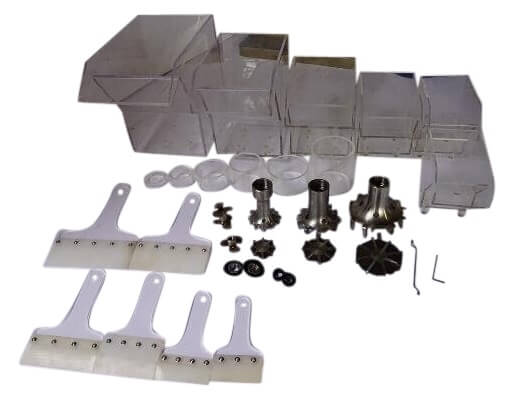

laboratory flotation machine parts

This machine comes via direct import and has not been reviewed (nor received) for UL or CSA Certifications.

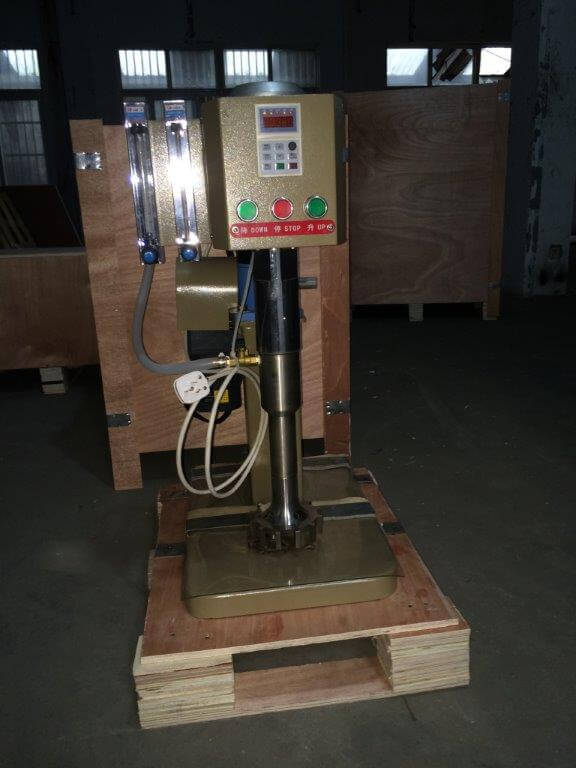

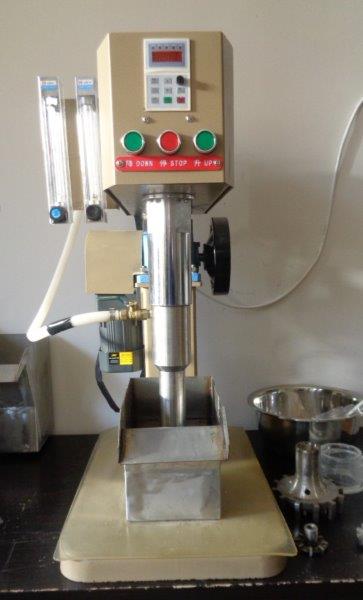

lab flotation machine (1)

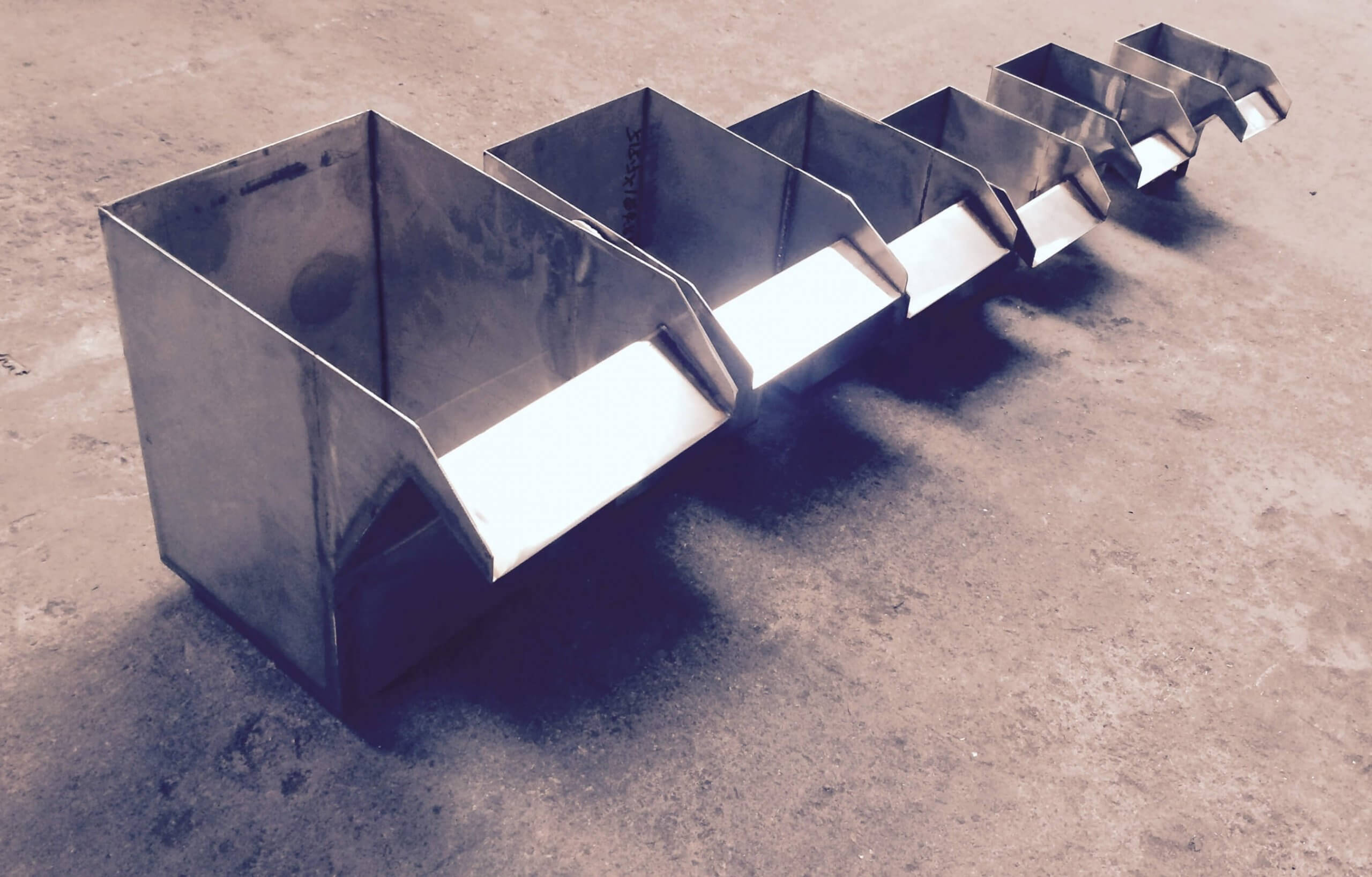

d12 replacement laboratory flotation tanks (1)plastic acrylic flotation cells d12

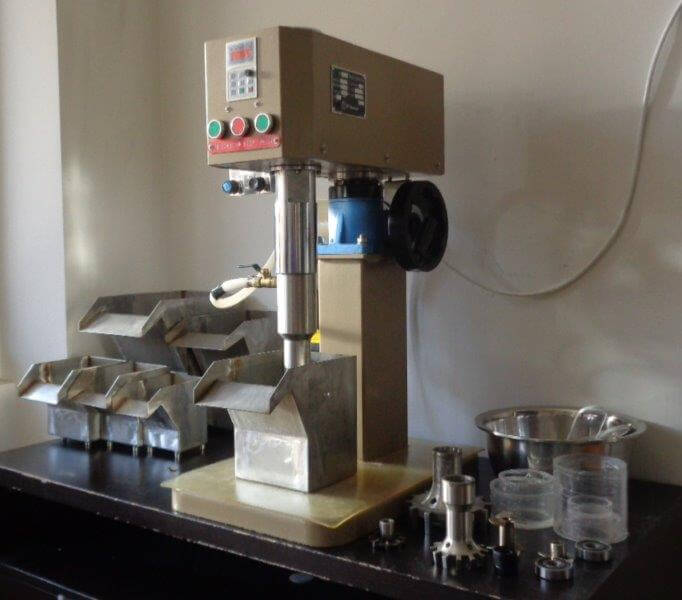

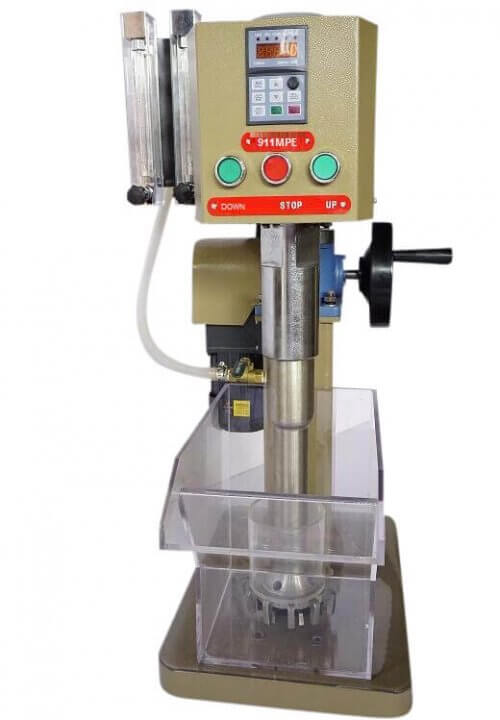

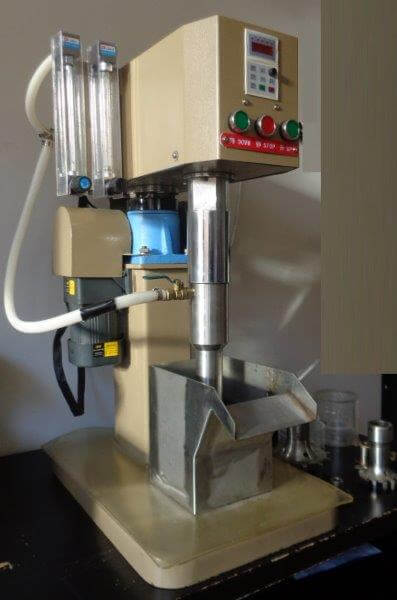

laboratory flotation machine (1)d12 flotation cell (1)

Comparing our Laboratory Flotation Machine to an original D12

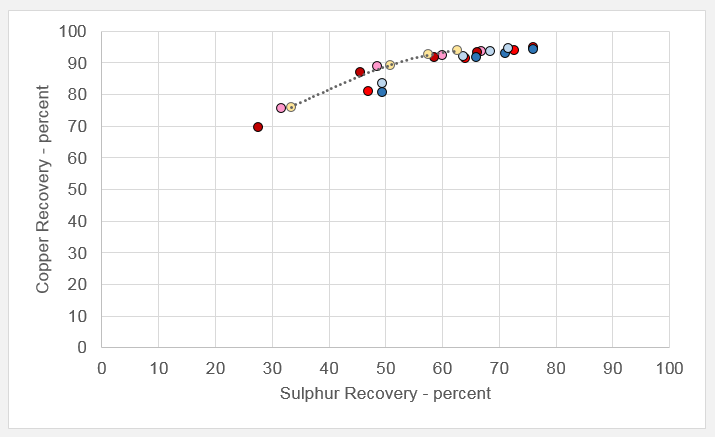

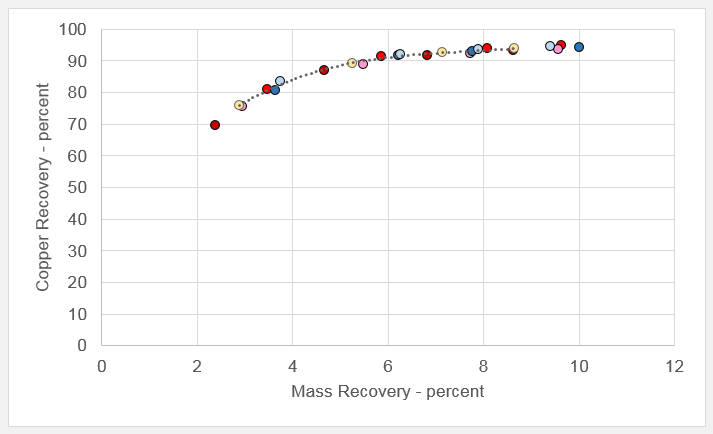

laboratory flotation machine results (1)

The dotted line displays the results from this flotation machine

laboratory flotation machine results (3)

The dotted line displays the results from this flotation machine

laboratory flotation machine results (4)

attrtion & scrubber kit

Attrition & Scrubber Tanks sold separately for $500

Laboratory Flotation Machine Troubleshooting

Be sure to connect to the correct power supply. Here is on 110 Volts instead of 220 Volts.
