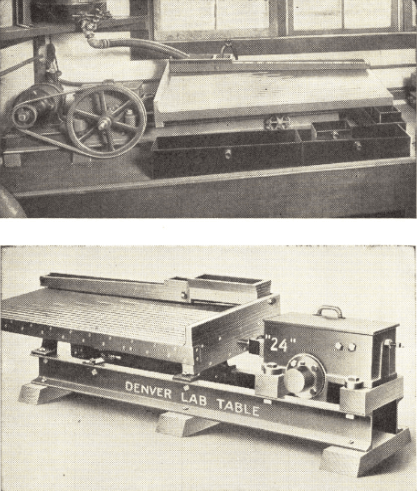

small_laboratory_gold_concentrating_table
https://www.911metallurgist.com/equipment/gravity/small-gold-shaker-table/

CONCENTRATING TABLE —For running concentrating tests on a small scale, this Laboratory Concentrating Shaker Table is an indispensable unit. The action of this table duplicates the commer­cial units, and field results can be authentically reproduced. In fact, it is used as a pilot table for continuous operation in many large tonnage plants.

BUY A MODERN LABORATORY GOLD SHAKER TABLE

A set of special product pans has been designed for batch work, which makes it very con­venient for catching the middlings, concentrates and tailings, with small supplementary pans which can be shifted within the main pans for cutting special samples.

This table consists of a single table deck mounted on steel channel under-structure, with enclosed self-oiling head motion, improved drawbar and a positive tilting device. Two interchangeable sand and slime decks are furnished with the 40 by 18 inch size. The 50 by 24 inch size has a single combination sand-slime deck.

Shaking tables, also known as wet tables, consist of a riffled deck on some type of support. A motor, usually mounted to the side, drives a small arm that shakes the table along its length (Figure 7). The riffles are usually not more than an inch high and cover over half the table’s surface. Varied riffle designs are available for specific applications. Shaking tables are very efficient at recovering heavy minerals from minus 100 microns (150 mesh) down to 5 microns in size.

Deck sizes range from 18 by 40 inches for laboratory testing models to 7 by 15 feet.

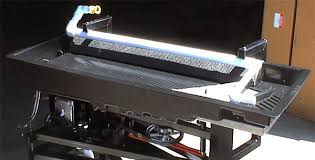

small-laboratory-gold-shaking-table
https://www.911metallurgist.com/equipment/gravity/small-gold-shaker-table/

These large tables can process up to 175 tons in 24 hours. The two basic deck types are rectangular and diagonal. Rectangular decks are roughly rectangle shaped with riffles parallel to the long dimension. Diagonal decks are irregular rectangles with riffles at an angle (nearly diagonal). In both types, the shaking motion is parallel to the riffle pattern. The diagonal decks generally have a higher capacity, produce cleaner concentrates, and recover finer sized particles. The decks are usually constructed of wood and lined with linoleum, rubber or plastics. These materials have a high coefficient of friction, which aids mineral recovery. Expensive, hard-wearing decks are made from fiberglass. The riffles on these decks are formed as part of the mold.

In operation, a slurry consisting of about 25% solids by weight is fed with wash water along the top of the table. The table is shaken longitudinally, using a slow forward stroke and a rapid return strike that causes particles to “crawl” along the deck parallel to the direction of motion. Wash water is fed at the top of the table at right angles to the direction of table movement. These forces combine to move particles diagonally across the deck from the feed end and separate on the table according to size and density (Figure 8).

In practice, mineral particles stratify in the protected pockets behind the riffles. The finest and heaviest particles are forced to the bottom and the coarsest and lightest particles remain at the top (Figure 9). These particle layers are moved across the riffles by the crowding action

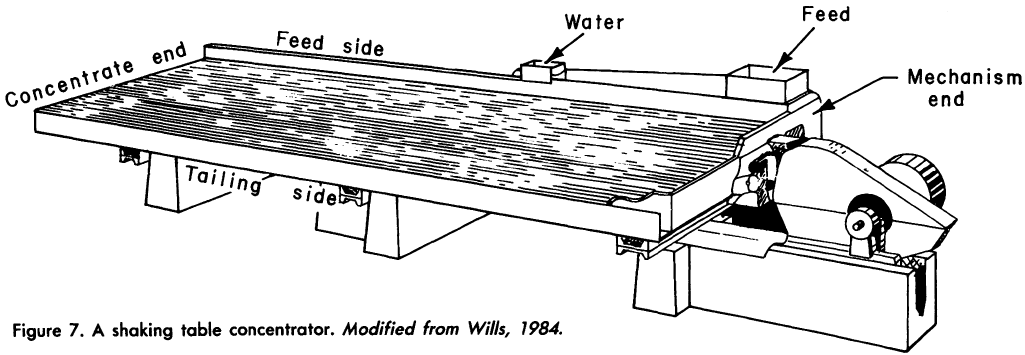

A shaking table concentrator

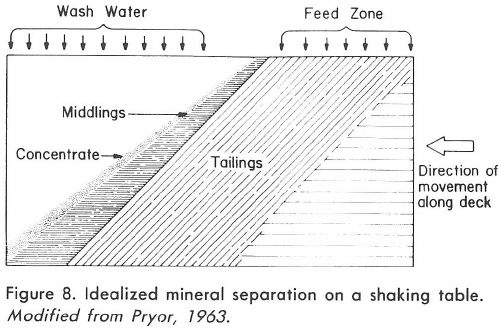

Idealized mineral separation on a shaking table

of new feed and the flowing film of wash water. The riffles are tapered and shorten towards the concentrate end. Due to the taper of the riffles, particles of progressively finer size and higher density are continuously brought into contact with the flowing film of water that tops the riffles, as lighter material is washed away. Final concentration takes place in the unriffled area at the end of the deck, where the layer of material at this stage is usually only a few particles deep.

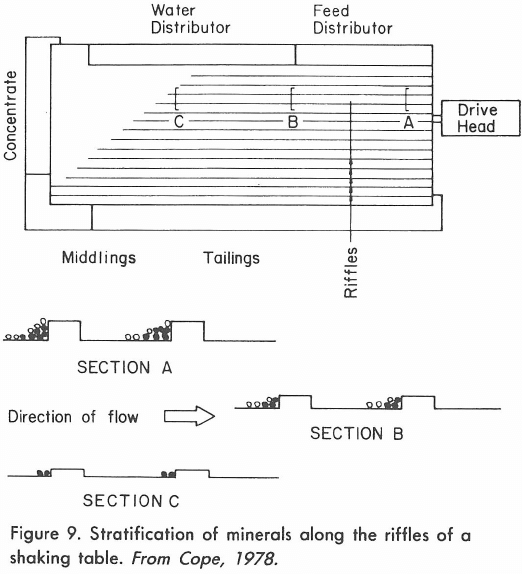

Stratification of minerals

The separation process is affected by a number of factors. Particle size is especially important. Generally, as the range of sizes in feed increases, the efficiency of separation decreases. A well classified feed is essential to efficient recovery. Separation is also affected by the length and frequency of the stroke of the deck drive, usually set at ½ to 1 inch or more with a frequency of 240 to 325 strokes per minute. A fine feed requires a higher speed and shorter stroke than a coarse feed. The shaking table slopes in two directions, across the riffles from the feed to the tailings discharge end and along the line of motion parallel to the riffles from the feed end to the concentrate end. The latter greatly improves separation due to the ability of heavy particles to “climb” a moderate slope in response to the shaking motion of the deck. The elevation difference parallel to the riffles should never be less than the taper of the riffles; otherwise wash water tends to flow along the riffles rather than across them.

A modification of the conventional shaking table designed to treat material smaller than 200 mesh (75 microns) is the slimes table. A typical slimes table has a series of planes or widely spaced riffles on a linoleum covered deck. Holman and Deister produce widely used slimes tables.
