iPump for iCon i150 Gold Concentrator

US$10,500

The iCON Slurry Pump is designed to be in a permanent position and anchored to the proper floor location. Appropriate fasteners are to be used in the provided mounting holes. The controller should be mounted as determined by the customer and a plug attached to the end of the cable provided.

New units are pre-tested, pre-adjusted, and ready for service. The slurry pump discharge fits a standard 1-1/2” ANSI flange and is designed to be used with a coupling combo nipple and Ø1-1/2” slurry hose (all parts customer supplied). Once installed and operating any problems should be reported as soon as possible.

test
Category:

Description

To change wear parts such as the impeller and slurry pump casing, first, remove 4 large nuts on the motor mounting plate. With these nuts removed, the slurry pump can be disassembled (refer to exploded view – drawing P100001-SP).

Note: do not remove the 8 motor positioning socket set screws as these have been adjusted to accurately position the impeller within the slurry pump casing. The supplied lifting eye should be fastened during disassembly for use as a motor/pump lifting point. In order to remove the impeller, use the wrench flat on the top of the motor shaft and unthread the impeller from the shaft (if necessary, use a hammer – tap on the impeller to loosen it). Remove the impeller rubber stopper, it may be reusable. Hand tighten replacement impellers.

pump

ipump performance curve

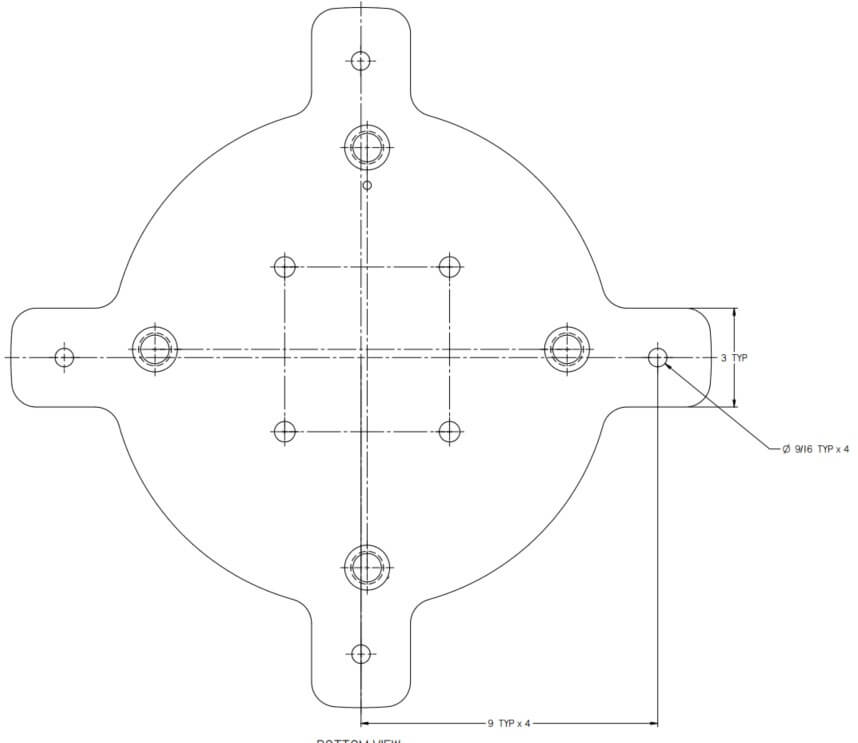

i pump base plate reference
I pump base plate reference
