Laboratory Ball Mill – Ball & Rod

Laboratory Ball Mill – Ball & Rod

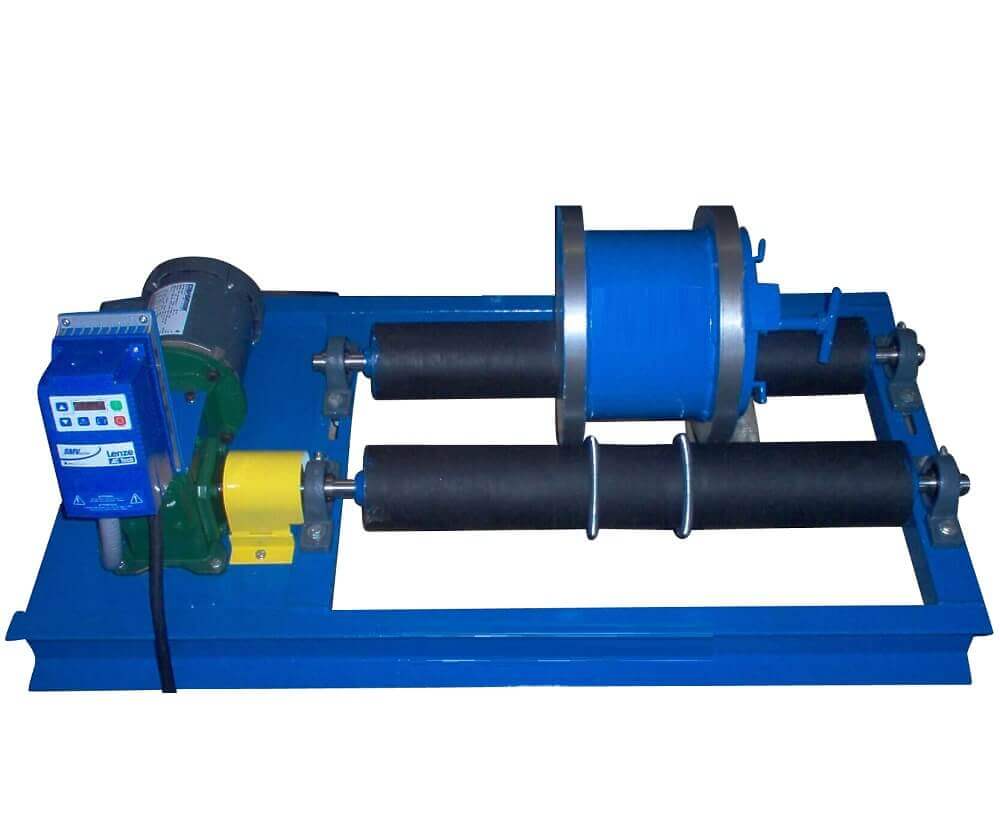

Here is a convertible laboratory ore grinding mill. Use it as a Lab Ball Mill if you like over-grinding or a Rod Mill if you prefer selective milling.

  • Sizes 8″ x 8″ to 8″ x 16″ (ball and rod)
  • Extra Large Batch 12″ x 15″ (10 kilo ore load)
    canada manufacturer
  • Mild steel construction
  • Cantilever design
  • Integral lifters
  • Bayonet-type lid closure
  • Rubber seal gaskets
  • Wash screen
  • Motor/reducer and v-belt drive
  • OSHA-type drive guard
  • Portable steel frame

Options1-year-warranty

  • Stainless steel construction
  • Urethane or rubber-lined
  • Variable-speed drive
  • Safety cage
  • Ball or rod charge
test

Description

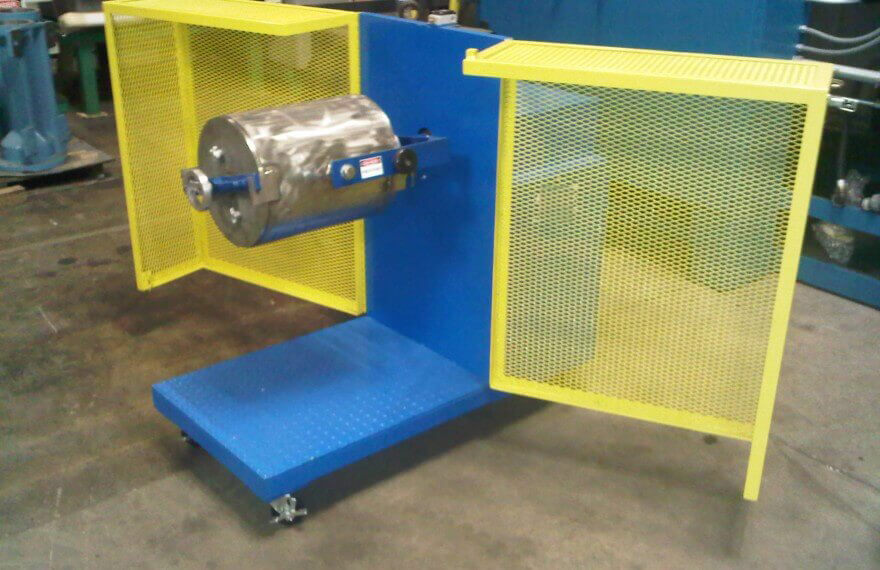

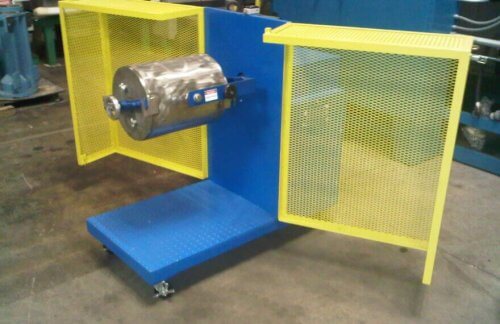

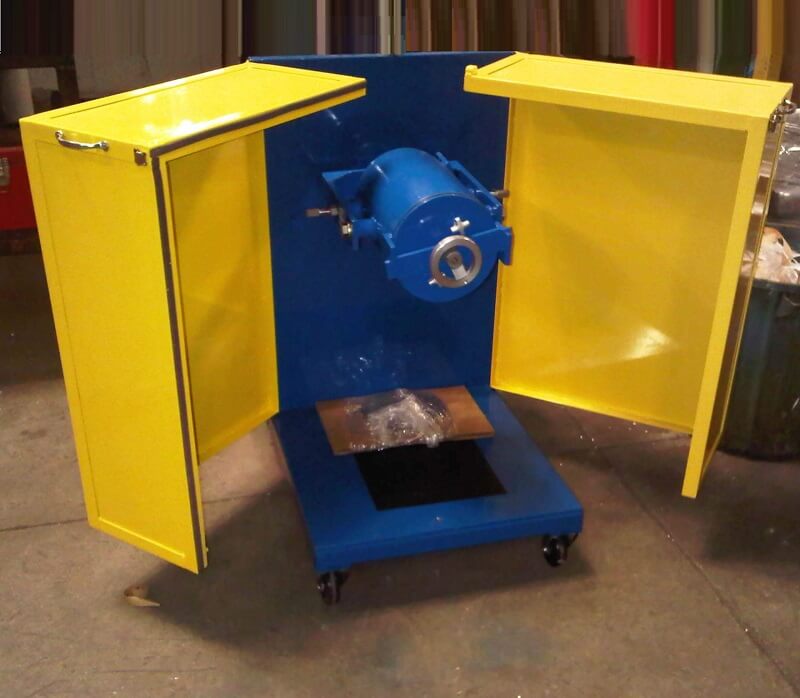

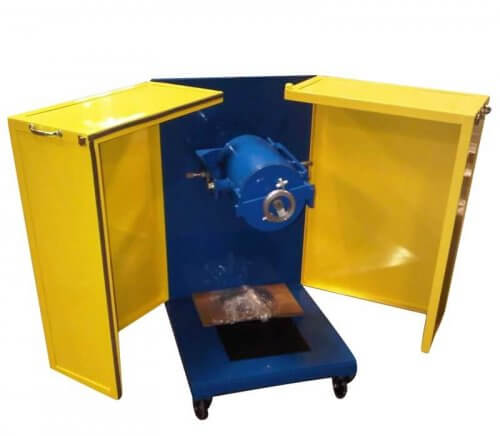

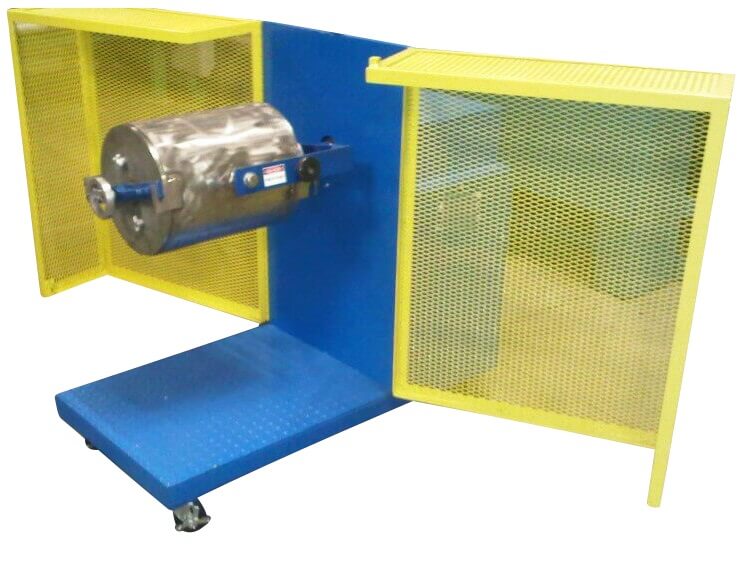

small batch laboratory grinding mill rod ballbatch grinding mill station (6)

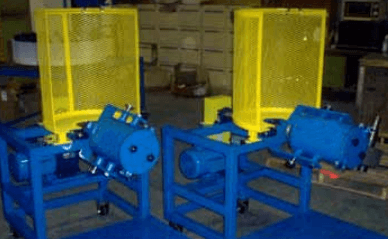

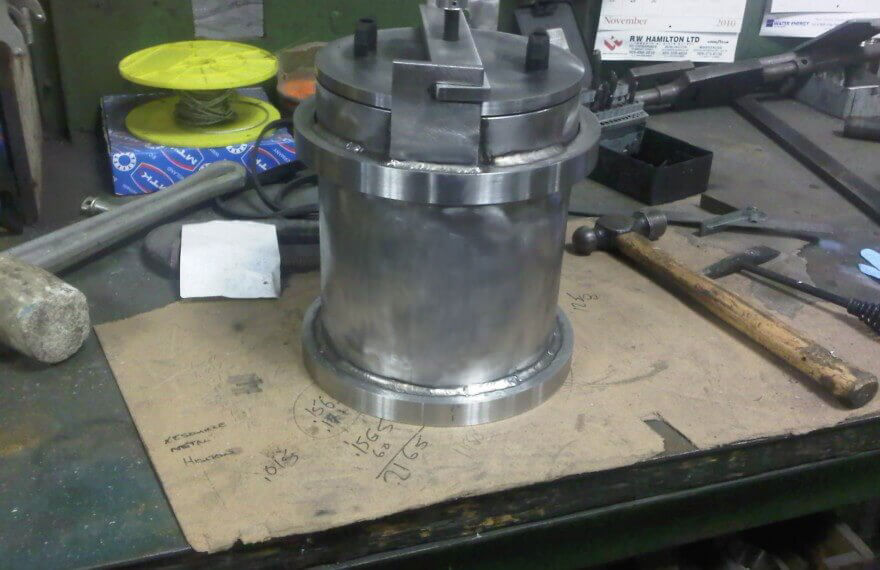

laboratory jar roll grinding mill (4)

  1. A batch-grind technic is described which was designed for use in studying the rate of production of finished product in a ball mill. This rate is given in grams per minute.
  2. The rate of production of finished product may or may not increase with time of grind over a limited time range. With quartz, the rate, when grinding to finished minus-65 and minus-100 mesh products, is greatest for the initial three-minute time of grind increment. For finished sizes finer than 100 mesh the maximum rate of production of finished product occurs at later time increments of grind.
  3. The rate of production of finished product, disregarding the element of friction between balls and liners, seems to be a function of the total surface of unfinished sand grains in the mill. As long as there is an increase of surface of unfinished sand in the mill, regardless of weight, there is an increase in rate of production of finished product. Hate of production drops off with decrease of surface of unfinished sand in the mill.
  4. The rate of production is an inverse function of fineness of finished product. The mill employed grinding quartz had four times as much capacity to produce finished minus-65 mesh product as it had to produce finished minus-250 mesh sand. For some ore the capacity of the mill was, roughly, twice as great when grinding finished minus-65 mesh product as when grinding finished minus-250 mesh product.
  5. The rate of production of finished minus-150, minus-200, and minus-250 mesh some ore can approximately three times the rate of production of the same finished sizes of quartz.

Laboratory Ball Mills

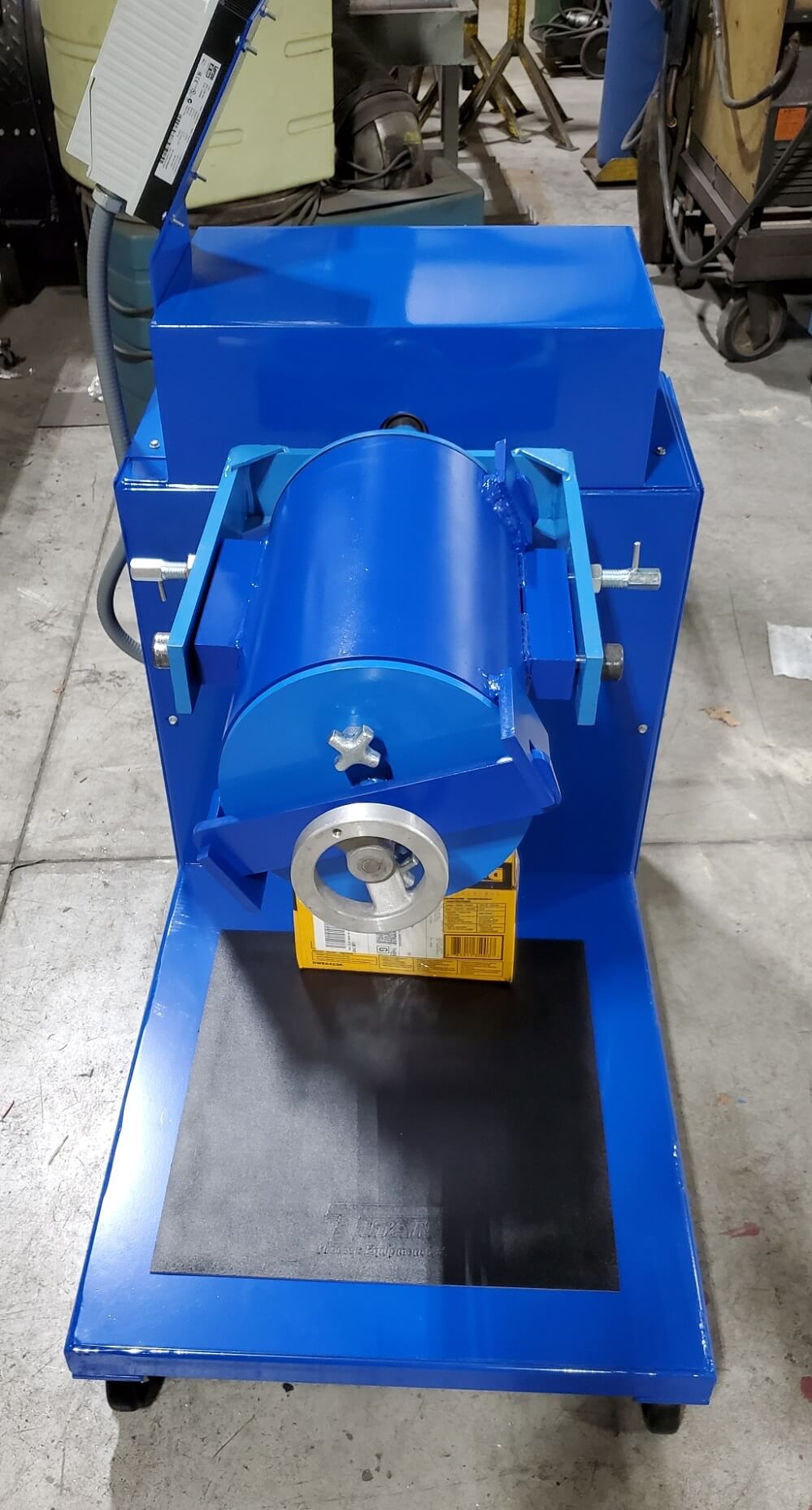

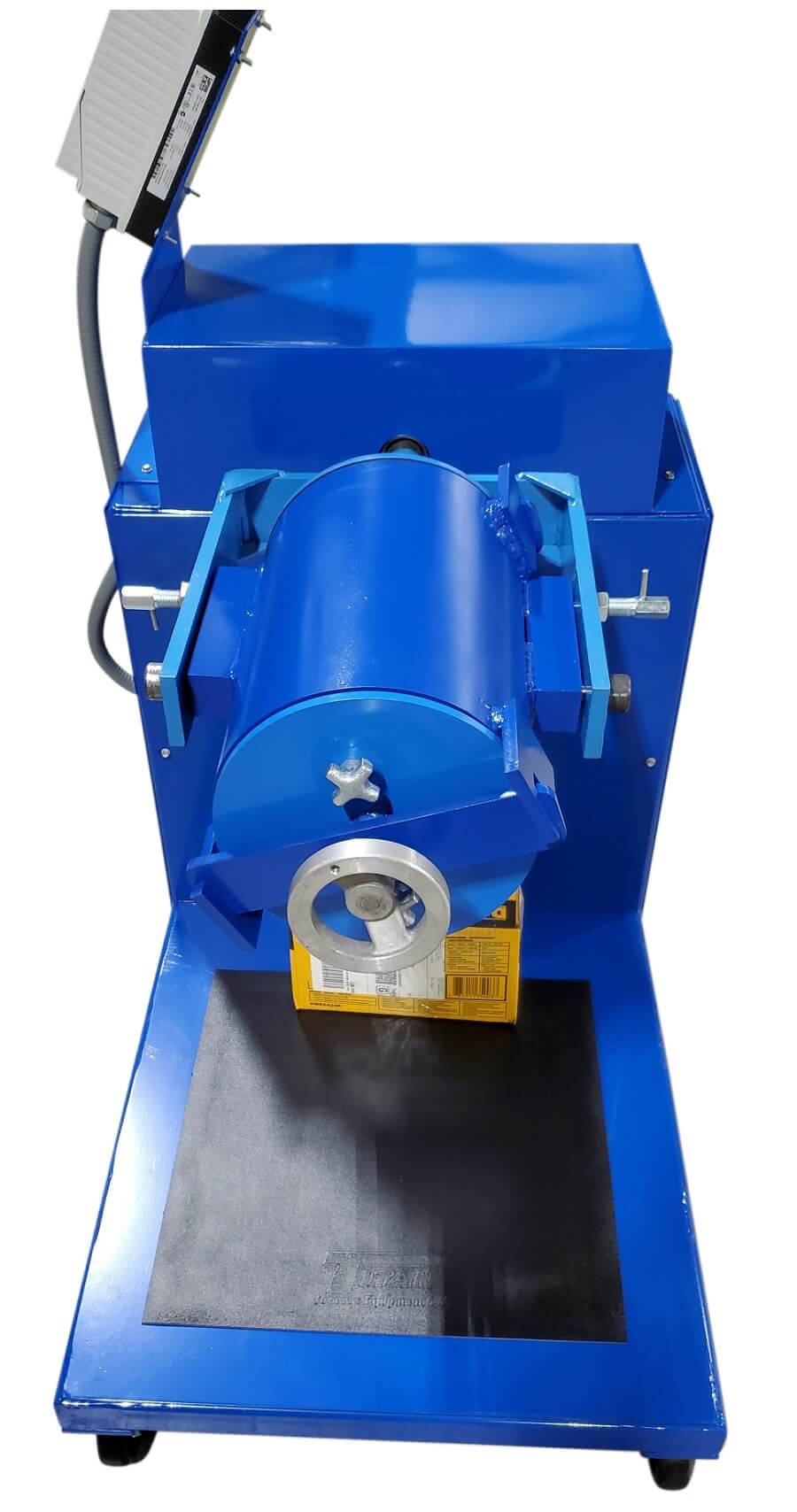

laboratory ball mill (2)laboratory ball mill grinding station

A Laboratory Ball Mill is used for grinding in laboratory flotation test work, wet grinding is necessary in several stages in order to approximate the actual grinding conditions of a ball mill and classifier in plant operation. With this small ball mill it is possible to grind successfully in several stages without dilution, because the large feed opening and discharge hole (which retains the balls while the mill is being discharged) permits quick and thorough draining with the use of a minimum of wash water. Used in conjunction with a (Closed) Ball Mill, and a laboratory batch classifier saves time.

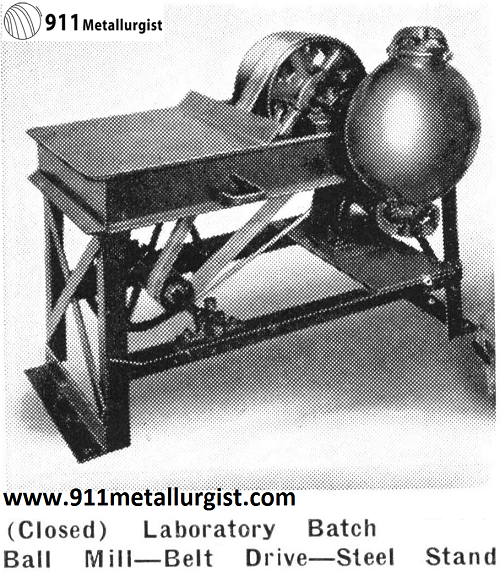

laboratory ball millclosed batch laboratory ball mill

laboratory-ball-mill-dimensions-12

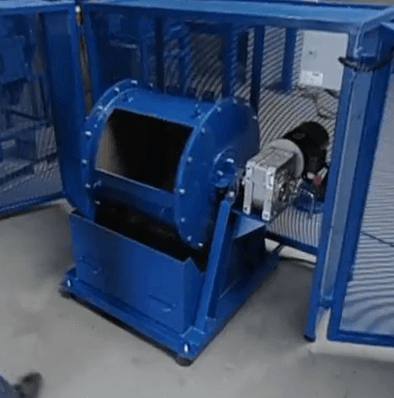

Batch Laboratory Ball Mill

The (Open) Batch Mill makes possible simulation of grinding in a ball mill-classifier circuit by grinding a fixed time, then hand classifying with a sieve and a bucket and returning the sand to the mill for further grinding. Pulp volume can be kept at a minimum by control of wash water since the ball load does not dump out. Thus fine or coarse grinding is accomplished with ease of manipulation. The mill is used considerably as a regrind unit for further size reduction of flotation concentrates, table concentrates, middlings, and other mill products.
Air may be introduced to the pulp, if desired, through the open end of the cast steel drum.laboratory-ball-mill-on-steel-standThe (Open) Laboratory Ball Mill can be used for the amalgamation of table and flotation concentrates, by using one 4″ ball during the grinding action. A few slight changes provide for mounting an Abbe Jar on the driving shaft opposite the drum. This affords an excellent combination laboratory grinding unit.

laboratory-ball-mill-for-sale

Batch or Continuous Laboratory Ball Mill

Laboratory Ball-Rod Mill is for grinding large quantities of ore in batch or continuous work. A grate discharge allows quick emptying for batch work; and a trunnion discharge, for continuous work. This flexible unit can also be used as an amalgamator.

The welded steel base can be provided in lengths suitable for supporting one, two, or three drums. One drum constitutes a ball mill; two, a rod mill; and three, a tube mill. The construction permits easy and rapid addition or removal of drums for conversion from one type to another, the trunnion being moved along the channels to accommodate the various lengths. The grinding drums are made with thick walls, thus eliminating the necessity of liners and the possibility of salting samples.laboratory-ball-mill-motor-h-pThis grinding mill has many commercial applications, since special acid resisting drums and heads can be furnished. Hard iron or alloy steel replaceable liners are easily inserted where wear is an item as in continuous use.

For continuous pilot test plants utilizing No. 7 or No. 8 “Sub-A” Flotation Machines, ball mills with larger grinding capacities are required. The 30″ Convertible Ball Mill is ideal for this application. Capacity of this mill with single section is 3 to 5 tons per 24 hours while the double section mill, illustrated above, has a capacity of 6 to 9 tons per 24 hours.laboratory-ball-mill

Buckboard and Muller Laboratory Ball Mill

The Buckboard and Muller ball mills are an extremely useful addition to most ore dressing or industrial laboratories. It accomplishes the quick reduction of small quantities of ore or other crushable materials to a fine powder. The unit consists of a chilled iron buckboard grinding surface, two sides of which are rimmed, and the desired type and weight of muller. The buckboard grinding surface is planed smooth and standard mullers have rounded crushing faces. Mullers may be purchased separately from either standard types shown or special from the three sizes of each type listed in the table and classified by rounded or flattened crushing faces. Rounded face mullers as listed have hickory axe type handles and flattened face mullers are equipped with hickory pick type handles.

denver-laboratory-ball-mill

Braun-Welsch Laboratory Ball Mill

laboratory_ball_mill

MILL, Ball, Braun-Welsch—A laboratory ball mill particularly suitable for the metallurgical labo­ratory  for flotation, cyanidation or amalgamation tests, but useful for any type of fine grind­ing. Will grind either wet or dry.

The ball mill body, or shell, is of gray cast iron, 12 inches inside diameter, 7 inches be­tween the two machined driving ribs. Openings in the centers of  heads allow free access of air during the grind, duplicating commercial scale plant conditions. The driving power is periph­eral, applied frictionally through the supporting rollers. For loading, discharging and cleaning, the mill body is raised from the rollers by a rack and pinion device. This allows it to be turned, bringing its axis into the vertical position shown above. Removing the upper head by loosening five lug screws makes the inside completely visible and accessible. Pulp can be discharged through the lower opening, the balls being retained by a spider. Discharging and clean­ing are rapid and thorough. All possibility of salting is eliminated, provided advantage is taken of the facilities for thorough cleaning.

The capacity is from 10 grams up to 12 pounds. Preliminary crushing to minus 10 mesh is recommended. The time for reducing an average sample to minus 65 mesh is about 15 min­utes. Iron balls are used. The usual ball charge is 22 pounds, assorted sizes, 1¼, 1½ and 2 inch being used. Steel rods 1½ inch diameter may be used with good results. The mill operates at 50 R. P. M. and is driven by a 1/6 H. P. 110 volt, belt-connected motor. Mounted on steel table; floor space required, 30 x 30 inches. Height over all, 51 inches. Net weight, including balls, 270 pounds. Gross shipping weight, approximately 350 pounds.

Complete with 35 pounds of iron balls, assorted sizes; steel table; 1/6  H. P. motor for 110 volts, A. C.; drive pulley and belt. Steel Balls, Extralaboratory-ball-mills

A Ball Mill of Laboratory size, for grinding wet or dry material. Specially recommended for experimental flotation work where the oil or reagent is mixed with the samples, and gives results in harmony with those obtained in regular practice. Can be used for any type of fine grinding.

The maximum capacity is 25 pounds of ore. An assortment of iron balls ¾ inches, 1 inch and 1¼ inch sizes are included. The sample should be ground 20 mesh or finer (preferably with a Braun type U A Pulverizer) before being placed in the ball mill.

Designed for laboratory needs with ready access for charging and discharging the sample. The oval opening measures approximately 10 x 4 inches, and is large enough for all practical purposes. The receiving pan is in two parts, the upper portion being fitted with a screen to catch the iron balls while the ground materials fall through into the lower pan.

Ball Mill Dimensions: Cylinder, 12 x 12 inches ; floor space 27 x 13 x 22 inches ; pulley, 12 x 2¼ inches. Speed recommended, 40-50 RPM. Shipping weight, 300 pounds. Iron Balls, Extra—For use with above. Receiving Pan, Extra. Source

Abbe Pebble Laboratory Mill

The Abbe Pebble Mill is particularly adapted to pulverizing or mixing either dry or wet materials.
pebble-laboratory-mill-1This unit is of the batch or intermittent type. The cylinder is approximately half filled with flint pebbles, porcelain balls, or metal balls; the material is put into the cylinder; a tight cover is fastened securely, to seal the mill hermetically; and the cylinder is then revolved until the fineness required is obtained. After that the tight cover is replaced by a grate discharge cover and the cylinder is revolved until the material is discharged, the grate retaining the pebbles or balls. For dry grinding it is customary to enclose the cylinder to prevent the spread of undesirable dust and also to preserve all of sample to insure accuracy of testing procedures.

In wet grinding, the same directions are followed except there is no casing required; and instead of replacing the tight cover with a grate cover, a special wet discharge cover, or the Abbe patented discharge valve, is used for emptying the mill.

In requesting recommendations for jar or pebble mills, please state:

  1. Material to be reduced.
  2. Size at which it will be fed to the mill.
  3. To what mesh it is desired to grind to produce the finished product.
  4. Capacity (lbs. or gals.) desired per hour.
  5. Whether material is to be ground wet or dry.

laboratory-ball-mill-speed-and-capacity-by-size-diameter

Laboratory Jar Mill

The Abbe Laboratory Jar Mill pulverizes materials by friction and the fall of pebbles or balls contained within a rotating jar. In operation the jar is filled almost to the center plane with pebbles, and enough crushed material is added to fill the interstices between the pebbles and bring the charge to about 3/5 of the capacity of the jar. Usually a coarse screen is used to separate the pebbles from the material after grinding.

Laboratory Jar Mill, Abbe

This unit is particularly adapted to pulverizing and mixing dry or wet materials and is manufactured in many sizes and styles for various capacities and conditions. Number of jars handled varies with mill size.

Laboratory Jar Mill, Abbe

Jars are manufactured in many sizes and are of the best material. The three kinds available are: (1) Porcelain Jars— carefully molded and fired to obtain the proper degree of vitrification so as to give acid and wear resisting qualities for grinding and agitation. (2) Metal Jars—made of the metal most resistant to the action of a grinding charge, such as Monel, stainless steel, cast steel, and bronze. (3) Pyrex Jars—are transparent and enable observation during grinding or agitating action.

list-size-of-laboratory-ball-mill-for-sale

Porcelain Laboratory Jar Mill

The Jar type Laboratory Ball Mill is ideal for use in pulveriz­ing, mixing of dry and wet materials, and agitation of all types of pulps. Two large bottles or as many as six small bottles can be used at the same time, thus providing a very flexible type of jar mill. When used for agitation, large ammonia bottles filled with pulp can be agitated continuously for any length of time.

Laboratory Jar Mill

The unit is compact and sturdy and the speed reducer with chain drive mechanism is positive, as shown in the illustration. The entire unit is on a steel base. Idler roll is adjustable to bottle size.

Low initial cost and reliable continuous or intermittent operation make this machine a desirable unit for laboratories of any size.

laboratory-ball-mill-capacity

Laboratory Pebble Mill

The Laboratory Pebble Mill is a simple, efficient laboratory batch grinding unit. This machine is also an effective laboratory bottle type agitator for use on all types of pulps especially cyanide pulp. Two large bottles or jars or as many as six small jars may be used at the same time. This provides a wide range of capacity for batch laboratory grinding, and, at the same time, affords a very flexible unit for batch agitation. The speed reducer and chain drive mechanism is positive and the entire unit is mounted on a steel base. Idler roller is adjustable to various bottle sizes. Data on jar sizes and types given under Laboratory Agitator, (Bottle Type).

Pebble Millporcelain-laboratory-ball-mill

Porcelain Laboratory Ball Mills

Pulverizing is effected in these ball mills by the friction and fall of balls or pebbles contained within a  rotating porcelain or glass jar. In general practice, the jar is filled to a little below the centre plane with pebbles; well crushed material then being added to fill the interstices and bring the charge to about three-fifths of the total space in the jar. After the operation, the pebbles and ground material are usually separated by means of a coarse grid.

Either hard or soft material may be ground, but it should not be moist to the extent that it will pack in the cylinder. If sufficient liquid is present, this method is superior to others for fine pulverization. Equipment is supplied complete with porcelain jar and flint pebbles.

MILL, Bail, Porcelain—Grinding capacity, taking sand as a unit, 1½ pounds. For belt-drive.

SPECIFICATIONS

  • Fluid capacity of jar: 1 quart.
  • Horse-power required: 1/12.
  • Single tight pulley: dimensions, 9 x 1 inches.
  • Floor space required: 9 x 11 inches.
  • Proper speed of rotation: 80-120 RPM
  • Shipping weight: 50 pounds.

Complete, with porcelain jar and 2 pounds of pebbles.

MILL, Ball, Porcelain—Grinding capacity, taking sand as a unit, 5 pounds. With tight and loose pulleys.

SPECIFICATIONS

  • Fluid capacity of jar: 1 gallon.

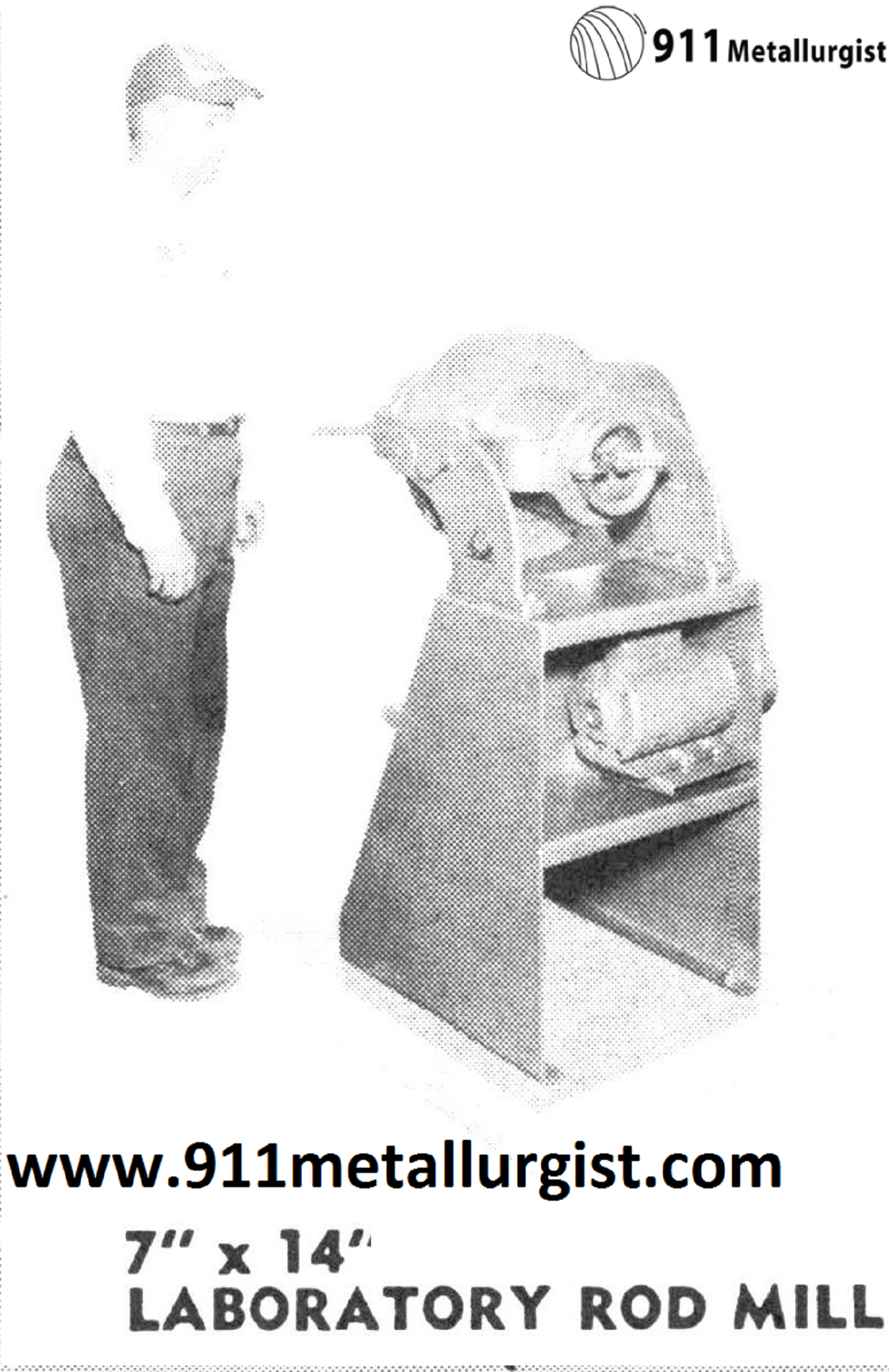

  • Horse-power required: 1/12.LABORATORY ROD MILL
  • Tight and loose pulleys: dimensions of each, 9 x 1 inches.
  • Floor space required: 14 x 25 inches.
  • Proper speed of rotation: 55-75 RPM
  • Shipping weight: 135 pounds.

Complete with porcelain jar and 8 pounds of pebbles.

  • MILL, Ball, Porcelain—Same as No. 39520, but with single tight pulley and handle. Shipping weight, 125 pounds.
  • Complete, with porcelain jar and 8 pounds of pebbles.
  • MILL, Ball, Porcelain—Grinding capacity, taking sand as a unit, 15 pounds. With tight and loose pulleys.

SPECIFICATIONS

  • Fluid capacity of jar: 4 gallons.
  • Horse-power required: 1/6.
  • Tight and loose pulleys: dimensions of each. 15×2 inches.
  • Floor space required: 22×30 inches.
  • Proper speed of rotation: 40×50 r. p. m.
  • Shipping weight: 250 pounds.

Complete, with porcelain jar and 25 pounds of pebbles.

Laboratory Grinding Tests and Laboratory Ball Mills

A complete laboratory service that includes preliminary examination, batch or pilot-grinding test, open or closed circuit grinding, both wet and/or dry—provides important data for determining accurate mill size, for determining circulating loads, sizing accessories, grindability indexes and power requirements. Preliminary tests are made at no cost to you. Send 100 lb. sample of material prepaid.

Image result for bond work index mill


Source: This article is a reproduction of an excerpt of “In the Public Domain” documents held in 911Metallurgy Corp’s private library.

Grinding Test Example

Experimental Conditions

Standardized experimental conditions may be stated thus:

grinding-classification-experimental-conditions

Under the foregoing conditions experiments were designed to obtain data on (1) the relation of time of grind to mill output in g.p.m., and (2) the relation of mill output in g.p.m. to size of finished product. The relation of time of grind to mill output was studied by two procedures: (1) By a “batch continuous grind” technic and (2) by a “batch cycle grind” technic. The batch cycle grind technic is described in Part II of this Paper, Batch Closed-Circuit Grinding.

The technic of the batch continuous grind used in this study was as follows:

A short period of grind was selected, which far purposes of discussion can be assigned a value of x minutes. A number of individual 1,750-gram charges were weighed out. One of them was ground for x minutes, one for 2x minutes, one for 3x minutes, and so on up to 8x minutes.

The product of each grind was dried, thoroughly mixed, and sieve-sizes, using 48, 65, 100, 150, 200, 250 mesh Tyler sieves. A 100-gram sample was used and the sieving was done by hand.

The g.p.m. output of the mill for any x-minute time increment is readily calculated by simple arithmetic. If Wx is the weight of finished product resulting in the first x-minute grind, the g.p.m. output is Wx % x. If W2x is the weight of finished product produced in 2x minutes time, the mill output for the second x-minute increment is W2x – Wx/x g.p.m., and so on.

By this procedure the output of the mill is approximately determined for any x-minute increment of grind. For the experiments with quartz, x was assigned a value of three minutes.

It is obvious that the maximum percentage (by weight) of unfinished product (feed) is present in the mill when x is zero, and that although the mill load remains constant, the weight of unfinished feed starts diminishing at the initial turn of the mill. For this reason it was thought that in batch grinding, which may be assumed to compare in a limited way to open-circuit grinding, the efficiency of the mill possibly should be a maximum at the very initial revolution of the mill. This proved not necessarily to be the case, as may be seen by reference to the experimental data given.

The many missing links in the science of ball-mill grinding as revealed in mailing the study here presented and as brought out in the subsequent analysis of the experimental data, led to the studies by the author and H. E. Lee which are presented elsewhere under the title of Ball Mill Studies, Parts I, II, III, etc., and to Part II of this paper.

Experimental Data and Discussion

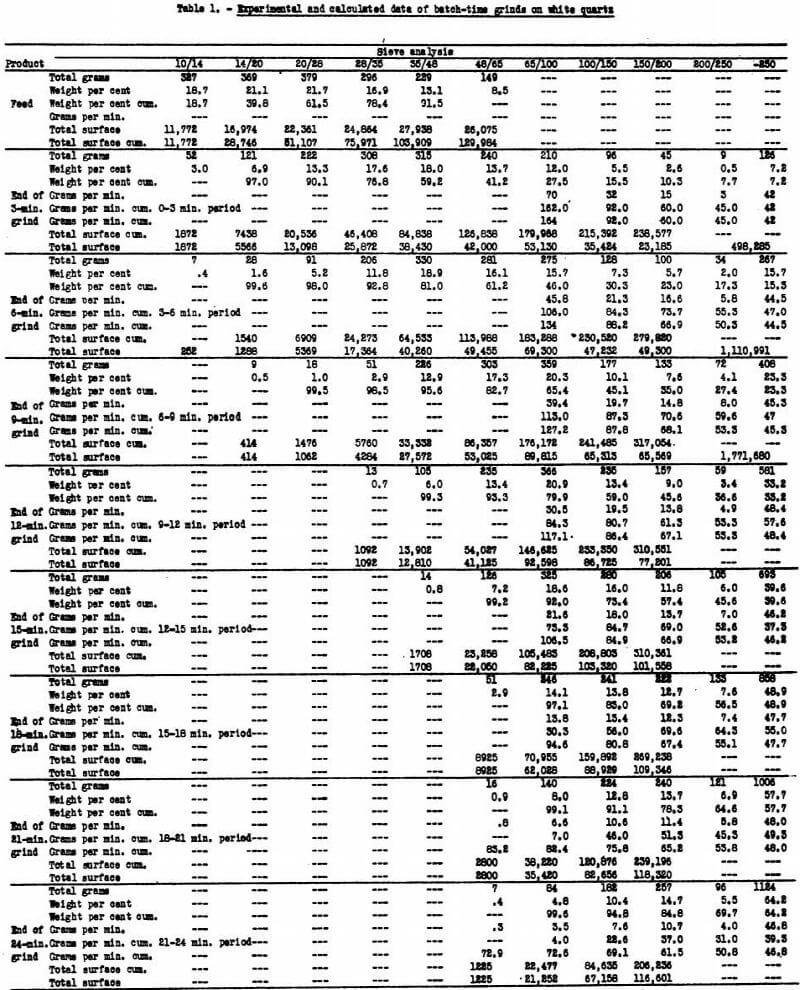

The condensed experimental data of this research and calculations based on these data are given in Table 1. The time of grind is given in vertical column 1. The sieve analysis of the product of each grind test is given, showing total grams, weight per cent, weight per cent cumulative, grams per minute, grams per minute cumulative, total surface, and total surface cumulative of each sieve size. There is also a horizontal column for each time, increment of grind, giving “grams per minute cumulative” for each three-minute grind increment throughout the entire 24-minute time, range—that is, the g.p.m. output for the 0 to 3 minute period, for the 3 to 6 minute period, for the 6 to 9 minute period, and so on for each period.

grinding-classification-experimentation

grinding-classification-curves

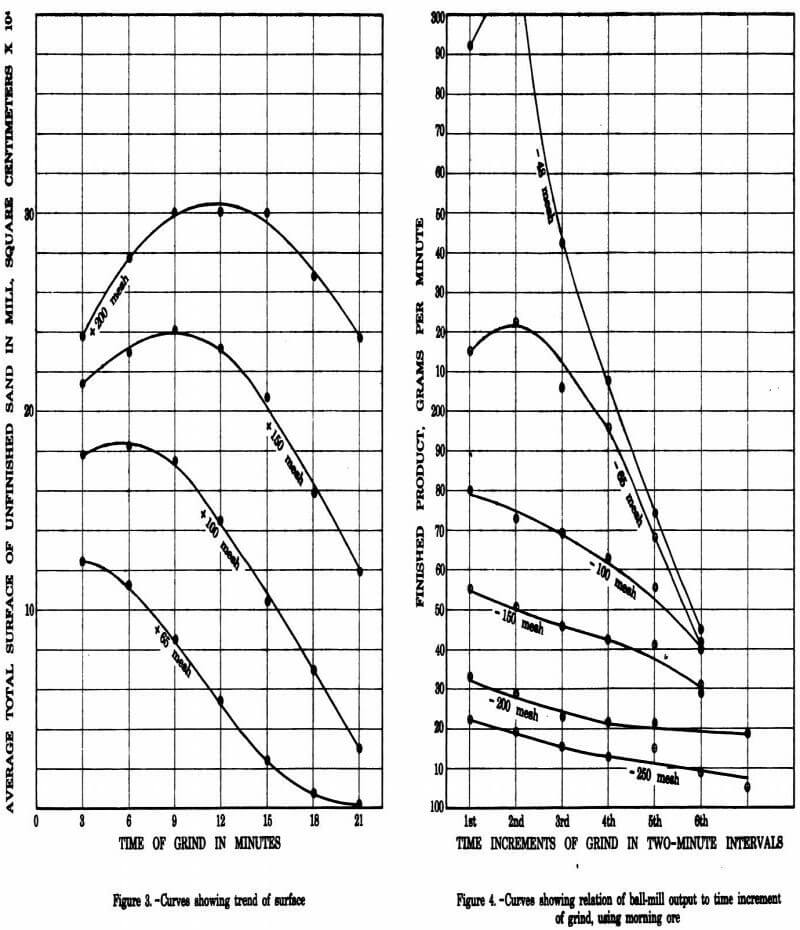

grinding-classification-ball-mill-output

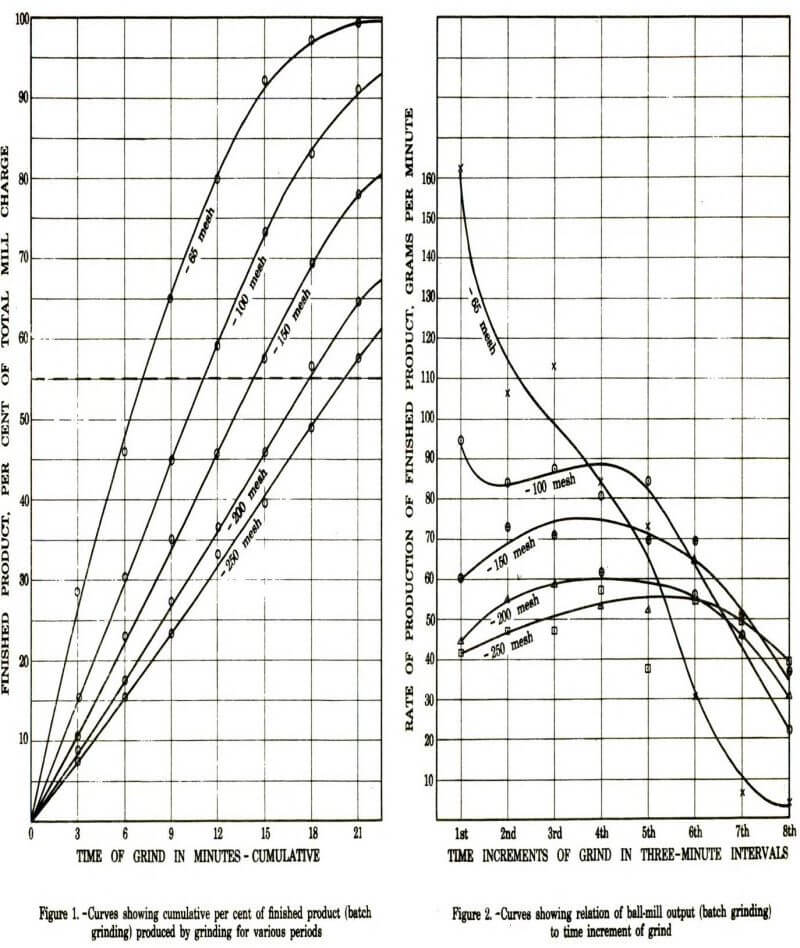

Figure 1 shows the “finished product-per cent of total mill charge” plotted vertically against “time of grind” horizontally for each of the finished sizes considered—namely, 65, 100, 150, 200, and 250 mesh. These lines may be termed “cumulative rate curves.”



Batch Grinding using Morning Ore

A set of tests similar to those previously described for quartz was made with Morning mine ore. The data are presented in Table 2. This ore is an aggregate largely of quartzite, siderite, sphalerite, and galena. These, data are shown graphically in Figure 4, in which “finished product, g.p.m.” is plotted vertically against “time of grind increment” horizontally. These curves indicate that at all sizes the highest rate of production of finished product is for the initial two-minute grind increment, except in the cases of the finished minus-48 mesh and minus-65 mesh products. In the absence of surface data, such as were calculated for quartz, it can not be known if the maximum finished product points for the minus-48 and minus-65 mesh sizes—which occur at the second two-minute grind increments—are due to increases in unfinished sand surface in the mill or to some other element.

The rate curves for Morning ore are unlike those for quartz in that the finished minus-150, minus-200, and minus-250 mesh product rate curves for



quartz reached a maximum after the grinding operation had continued through several time of grind increments. With Morning ore the rate curves fall off steadily from the start of the grind.

The significant fact to note from this set of experiments is that finished product is made most rapidly at the very beginning of the grind. This suggests that in the practical closed-circuit plant the circulating load should be large in order to keep a high percentage of unfinished sand in the mill.

For quartz grinding to, say, finished minus-100 mesh sand, a 100 per cent circulating load should give approximate maximum efficiency. For Morning ore the circulating load should be high for maximum efficiency. The charge should not remain in the mill longer than two minutes, or possibly one minute. For this (two min.) length of grind for, say, finished minus-100 mesh product, 20.6 per cent of the charge is reduced to finished size. Therefore, for high efficiency, a circulating load of not less than 500 per cent is required. This corresponds closely to practice now in vogue in the Morning Mill, Mullan, Idaho, where this material is being milled. In designing a plant to treat a new ore, a test of this kind should be of much value in selecting the type of “ball mill and classifier to be used. These experiments led to the “batch closed-circuit experiments, which are to be described in Part II of this paper.

Relation of Mill Capacity and Fineness of Finished Product

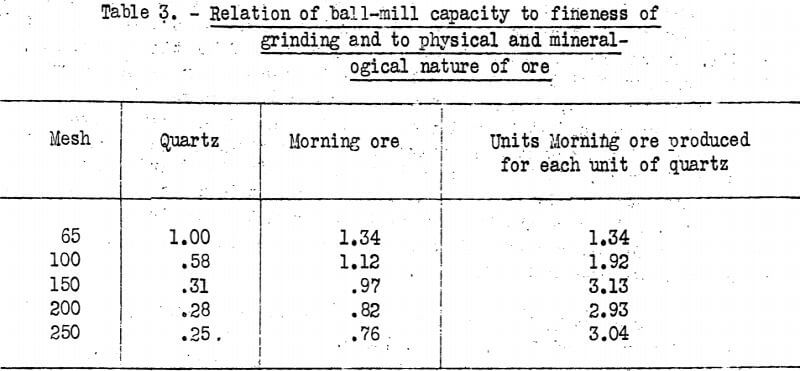

If the capacity of the mill used in these experiments be rated at one unit of finished minus-65 mesh product in a unit of time, its capacity to make finished product at any finer mesh may be calculated from Table I for quartz and from Table 2 for Morning ore. See Table 3.

grinding-classification-ball-mill-capacity

These data show that the mill has four times as much capacity when grinding to finished minus-65 mesh as when grinding to finished minus-250 mesh. It has approximately three times as much capacity to produce finished minus-150 mesh Morning ore as finished minus-150 mesh quartz. These figures all are based on the output of the mill for the initial grind period—three minutes for quartz and two minutes for Morning ore.

In batch grinding, and to a much lesser extent in closed-circuit grinding, the weight (not surface) of unfinished feed in the mill drops off rapidly as the time of grind continues.

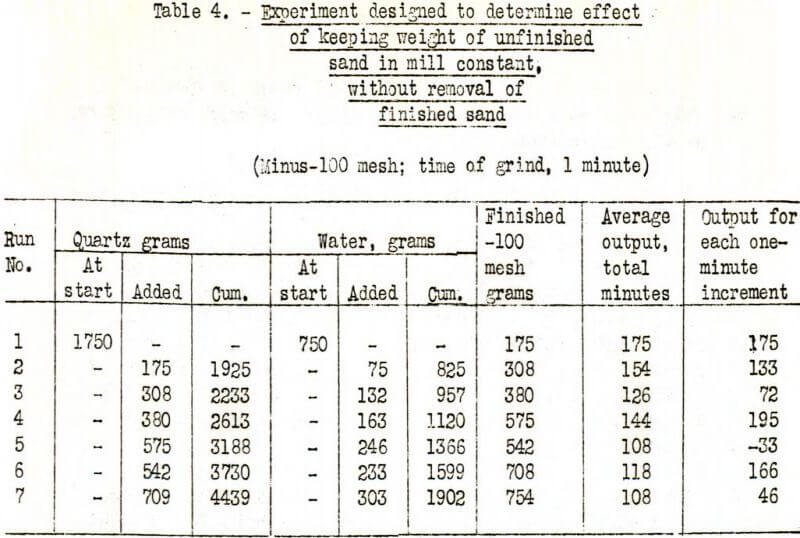

To learn if a greater mill output could be obtained than in any of the previous tests, an experiment was designed in which the period of grind was one minute. Quartz was used, and all other experimental conditions were the same as in previous experiments. At the end of each one-minute grind the charge was removed from the mill and the weight, in grams, of finished minus-100 mesh sand was determined. A quantity of new ore equal to the determined weight of finished product with the original charge was returned to the mill. The grind was conducted for another one-minute period. This process was repeated seven times, and each time enough new water was added to keep the water-ore ratio at 30:70 by weight. At seven new ore additions the mill became choked, and further additions could not be made.

The object in the plan of this experiment was to keep in the mill a nearly constant weight of unfinished feed, without removing the finished product. This procedure should, of course, result in high unfinished sand surface in the mill. The experimental data of this run are compiled in Table 4.

The output of finished minus-100 mesh sand produced the first minute is 175 grams; the output per minute for the first two minutes is 154 grams; for the first three minutes, 127 grams; for the first four minutes, 143 grams; for the first five minutes, 108 grams; for the first six minutes, 119 grams; and for the full seven minutes, 106 grams. On the basis of these figures the output is a maximum for the initial one-minute grind during, which only original feed is in the mill. Considered on the basis of output for each of the time increments, calculation shows that the output of the mill is greatest during the fourth minute grind increment, when 195 grams were produced. This result may be due to experimental error, and it is believed to be, for during the next minute (the fifth) increment the output is negative and for the sixth-minute increment the output is 166 grams. That the mill output was less for the third and fifth minute increments than for the fourth-minute increment is almost proof of experimental error, and the conclusion may safely be drawn that nothing is to be gained by overfeeding a ball mill, and that choking of the mill with finished product cuts down the mill efficiency.

grinding-classification-experiment-designed

Summary and Conclusions

  1. A “batch-grind technic is described which was designed for use in studying the rate of production of finished product in a “ball mill. This rate is given in grams per minute.
  2. The rate of production of finished product may or may not increase with time of grind over a limited time range. With quartz, the rate, when grinding to finished minus-65 and minus-100 mesh products, is greatest for the initial three-minute time of grind increment. For finished sizes finer than 100 mesh the maximum rate of production of finished product occurs at later time increments of grind.
  3. The rate of production of finished product, disregarding the element of friction “between balls and liners, seems to “be a function of the total surface of unfinished sand grains in the mill. As long as there is an increase of surface of unfinished sand in the mill, regardless of weight, there is an increase in rate of production of finished product. Rate of production drops off with decrease of surface of unfinished sand in the mill.
  4. The rate of production is an inverse function of fineness of finished product. The mill employed grinding quartz had four times as much capacity to produce finished minus-65 mesh product as it had to produce finished minus-250 mesh sand. For Morning ore the capacity of the mill was, roughly, twice as great when grinding finished minus-65 mesh product as when grinding finished minus-250 mesh product.
  5. The rate of production of finished minus-150, minus-200, and minus-250 mesh Morning ore is approximately three times the rate of production of the same finished sizes of quartz.
