Laboratory Centrifugal FALCON Concentrator

Laboratory Centrifugal FALCON Concentrator

The Falcon L40 enhanced gravity concentrator has a bowl diameter of 4” and is specifically designed for laboratory test-work on small ore samples. Applications include the concentration and upgrading of gold, platinum group metals, mineral sands, chromite, tin, tantalum, tungsten, iron ore, cobalt as well as many other metals and minerals with sufficient differences in specific gravity. It is used for the simulation of industrial scale Falcon high-G gold centrifuge models: Ultra-Fine (UF), Semi-Batch (SB), Continuous (C). The applicable model and operating parameters are dependent on sample specific features, such as the particle size and desired mass yield.canada manufacturer

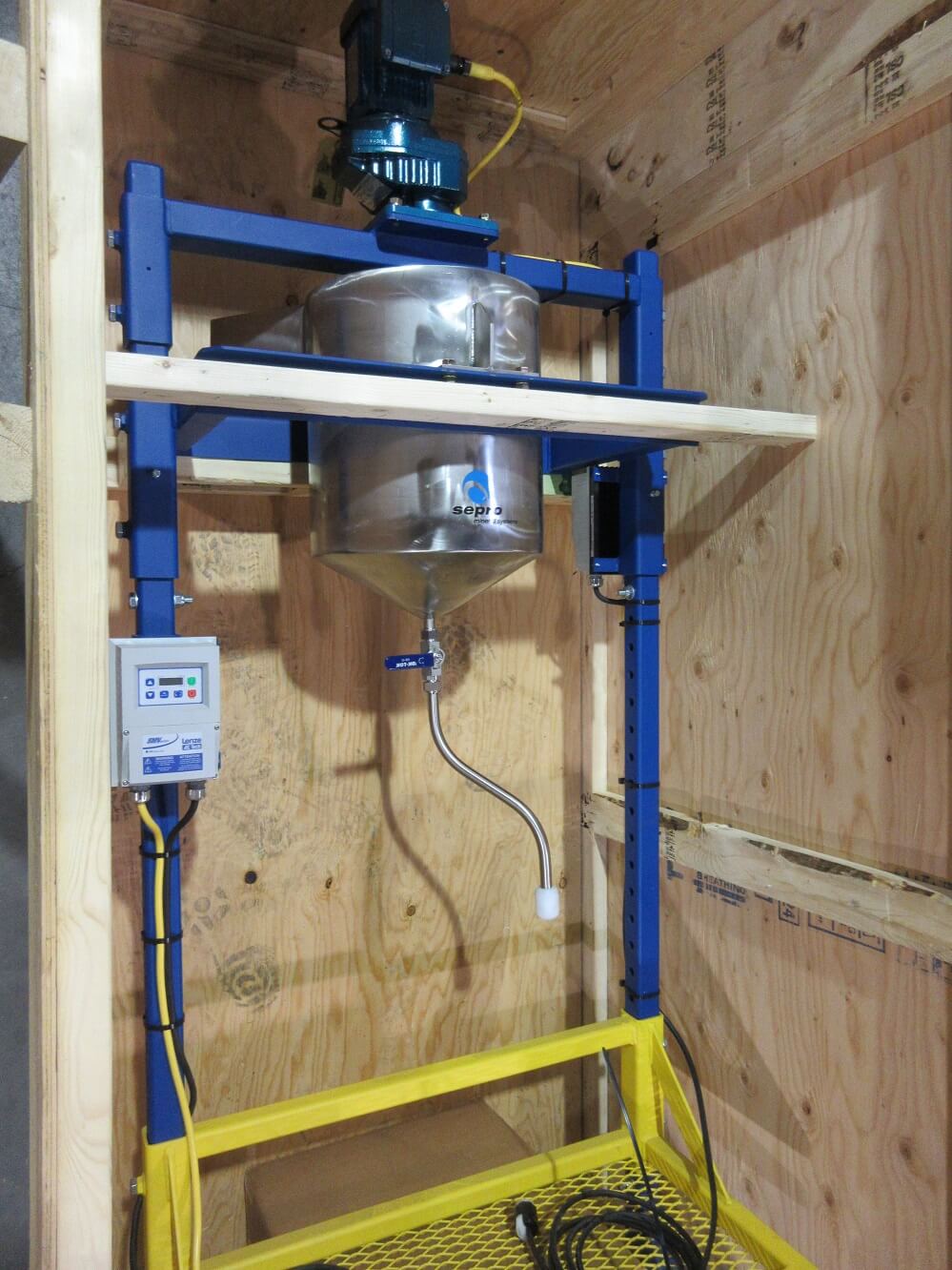

A fabricated adjustable L40 steel stand and 50 liter agitated stainless steel tank are optional additions. The machine is of stainless steel construction and a two stage UHMW polyethylene bowl. The materials of construction have been carefully selected to minimize the possibility for contamination between samples. The rugged functional design of this unit means that it is perfect for use at an exploration site or mineral processing laboratory.

test

Description

falcon laboratory concentrator

falcon_concentrator_specifications

falcon_concentrator

laboratory_falcon_concentratorfalcon l40 laboratory centrifugal concentrator



falcon concentrator (6)falcon concentrator (4)

falcon laboratory concentrator l40

laboratory knelson concentrator (1)laboratory knelson concentrator (2)


Mini Gold Centrifugal Concentrator

canada manufacturerThe i40 (NOW DISCONTINUED & replaced by the L40 show above) enhanced gravity concentrator has a bowl diameter of 4” and is specifically designed for laboratory test-work on small ore samples. Applications include the concentration and upgrading of gold, platinum group metals, mineral sands, chromite,  tin, tantalum, tungsten, iron ore, cobalt as well as many other metals and minerals with sufficient differences in specific gravity. It is used for the simulation of industrial scale Falcon high-G (200 G) gold centrifuge models. The applicable model and operating parameters are dependent on sample specific features, such as the particle size and desired mass yield.

With a capacity of up to 200 lbs/hr (80 kg/hr), the L40 is also ideal for small prospectors looking for the best possible gravity recovery of fine.

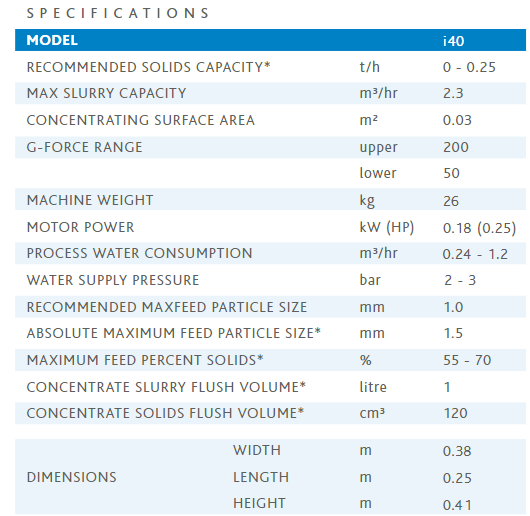

falcon_concentrator_specifications

Denotes application specific parameter, consult manufacturer. Note: Specifications are subject to change without notice. Equipment may not operate or achieve best performance under maximum capacities.

small falcon concentrator (1)

falcon_concentrator

small falcon concentrator

gold_centrifuge



gold_concentrator



gold_concentrator_001



gold_flour_recovery



gold_recovery_fine_gold
